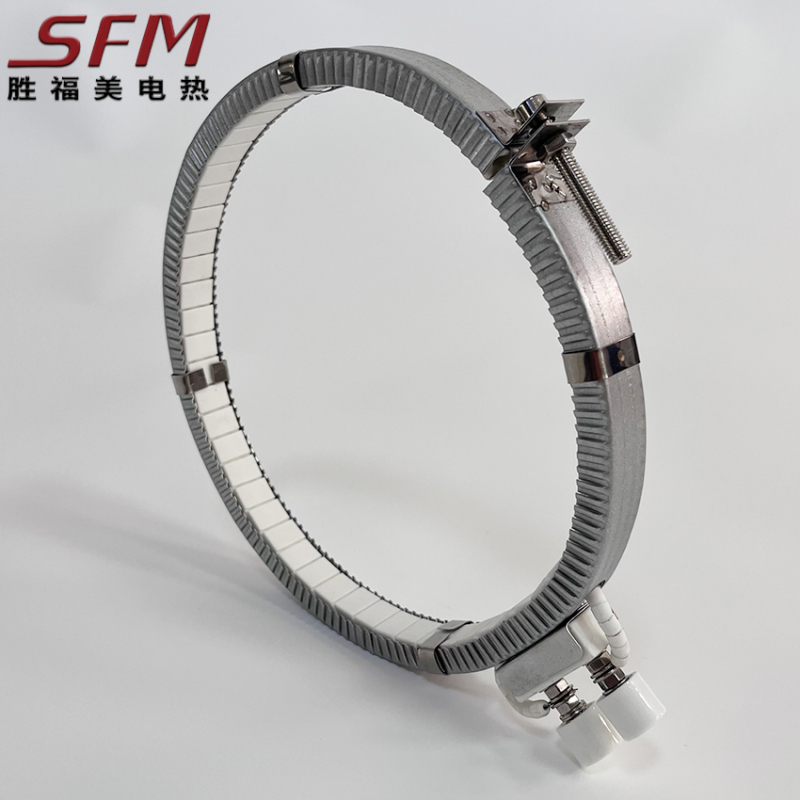

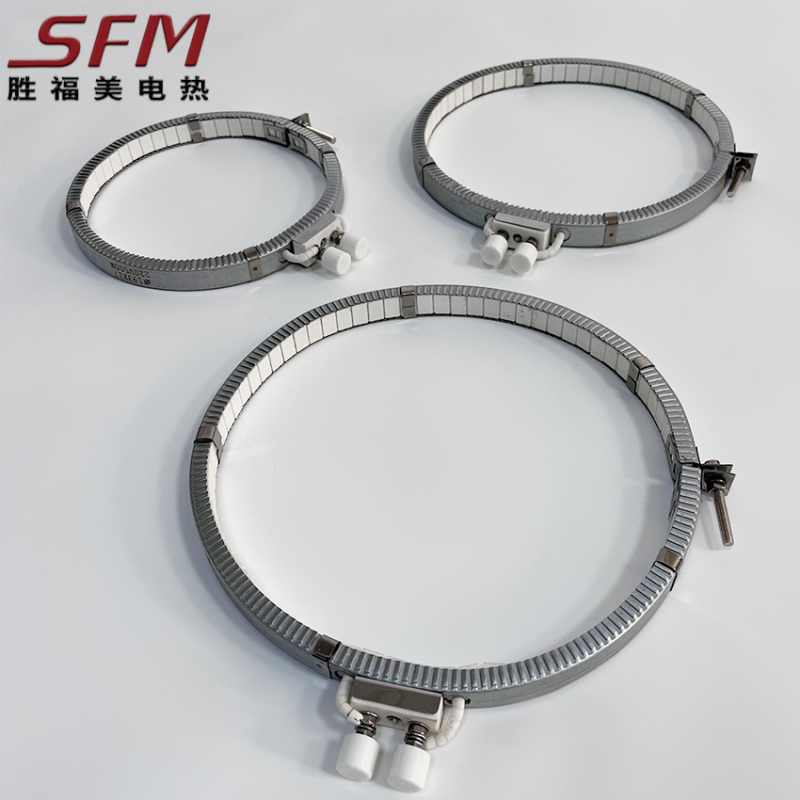

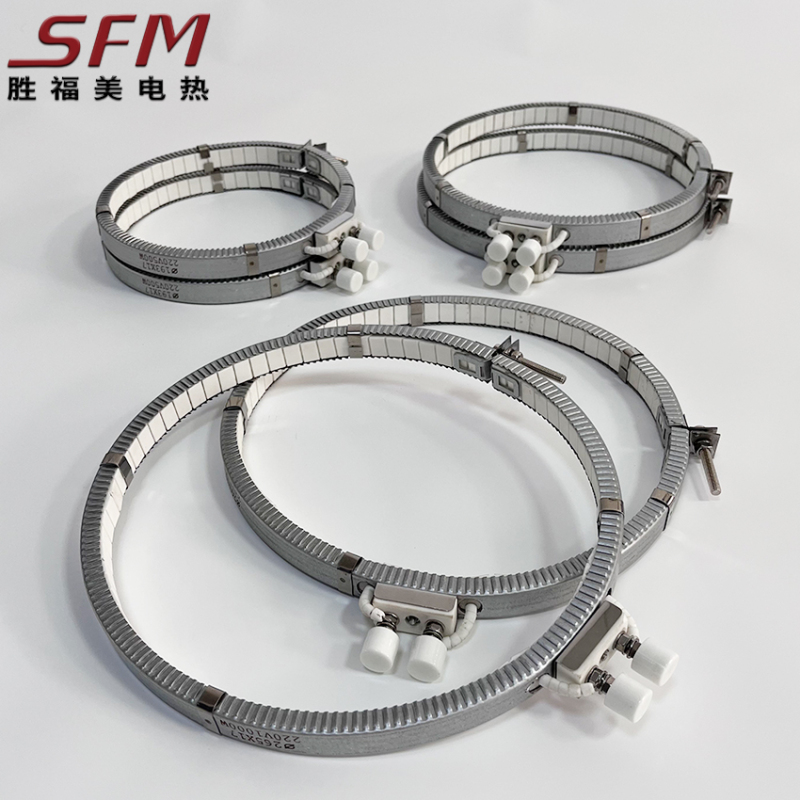

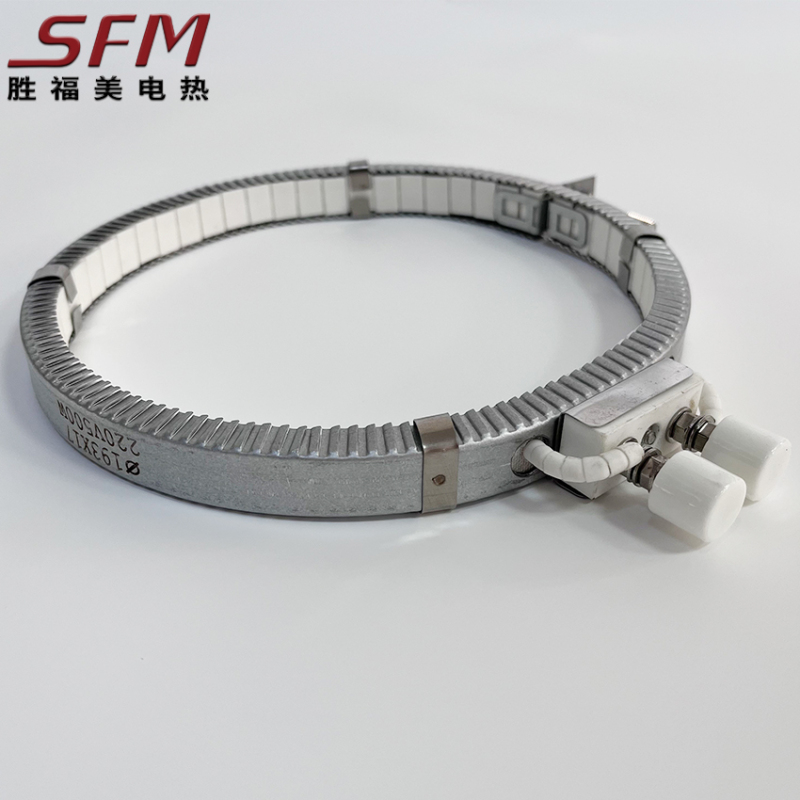

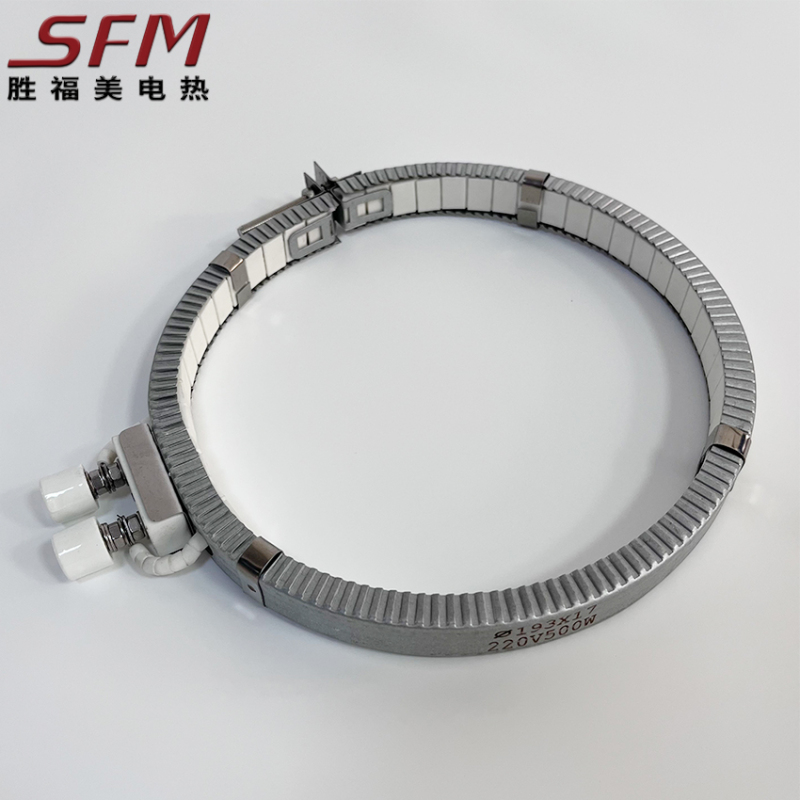

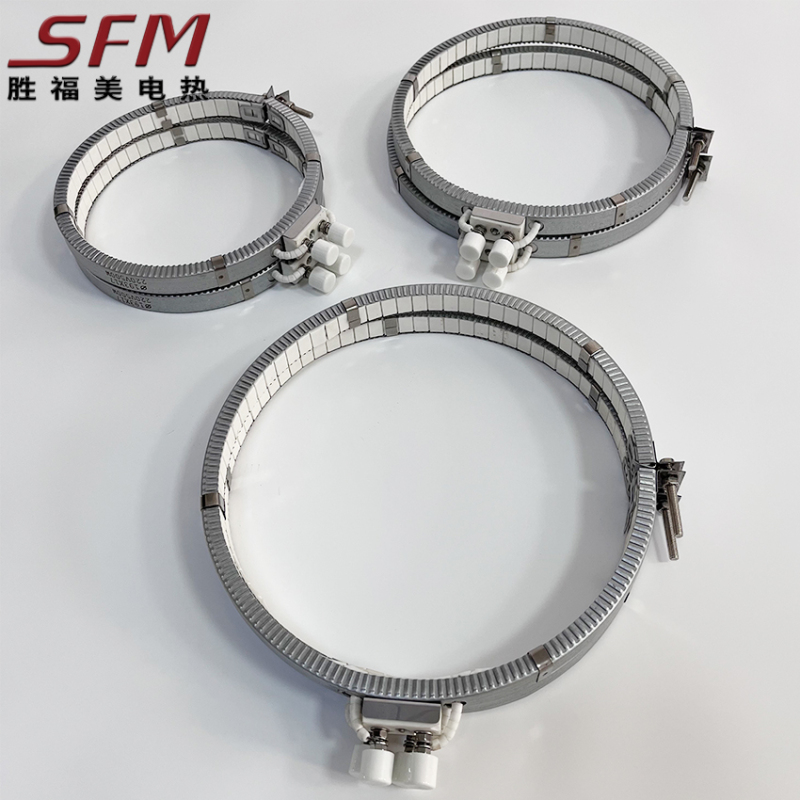

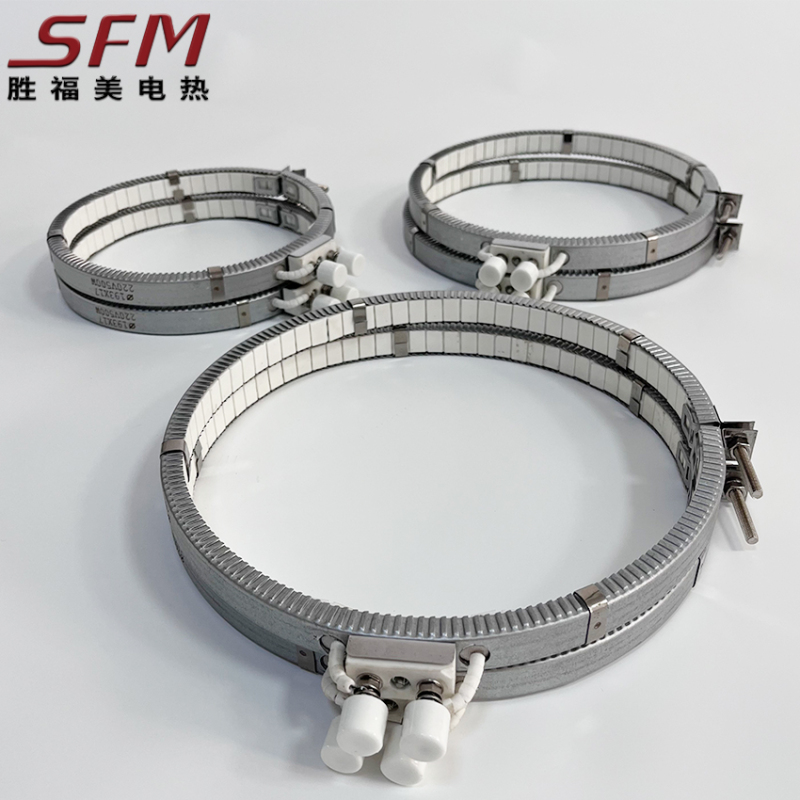

Ceramic Band Heater With screw

Ceramic band heater features: 1.The sheath of the heater is rust-resistant. 2.High class Nickel Chrome ribbon is used. 3.Operating temperature up to maximum of 500 degree centigrade. 4.Axial, Radial & Tangential terminals are available. 5.Thermocouple holes can be provided as per client's requirements.

  • SFM
  • China
  • 2-7 day
  • Information

MICA BAND HEATER

shengfumei mica band heaters are constructed by winding a nickel-chrome resistance ribbon around mica insulation and encapsulated in a stainless steel sheath. With temperature capabilities of up to 480°C, these heaters are ideal for plastic processing applications and for anywhere heat is needed on a round or curved surface.



CERAMIC BAND HEATER

Ceramic band heaters are designed with spirally wound inner resistance coils evenly threaded through interlocking insulated ceramic "tiles". The ceramic core of tiles is housed beneath a stainless steel sheet with serrated edges. Typical applications are plastic molding, extrusion and molding presses.


Ceramic Band Heater



NON-STANDARD LOCATION OF LEADS OR TERMINALS

Terminations could be offset, paralleled, centered, or at each end. Lead wires are available.

Leads or terminals may be located at any reasonable place along the heater for applications where standard connections may be inaccessible.



HOLES AND CUTOUTS

Mounting holes locations could be customized. Please provide drawing for hole dimensions and locations.



ONE PIECE OR TWO PIECE CONSTRUCTION

2 Piece construction is very suitable for locations where 1 piece is difficult to be installed.

2 Piece construction is available with any termination or clamping styles.


Ceramic nozzle Band Heater



                               Technical  parameters

Voltage

110V/220V/230V/240V/380V/415V

Power

Customized

Cold Withstand Voltage

AV2000V/ 0.75mA/ 3s

Hot Leakage Current

≤2mA

Wattage Tolerance

+5%, -10%

Max. Watt Density

5W/cm²

Resistance Tolerance

+10%, -5%

Max. Temperature

480℃ - Mica

600℃ - Ceramic



                              Main Materials

Sheath

Stainless steel 430 / 201 / 304 /

Resistance Wire

Ni80Cr20

Insulation

Mica/Ceramic

Lead Wire

Fiberglass (steel protective sleeve, steel hose & braid are available)

Terminal

Thread, ceramic, metal box, plug

Band Heater with ceramic


Features                                                                                   Design Details

1. Energy efficient, less power consumption                            Please provide the following information:

2. Provide uniform heat distribution                                          1. Operating temperature

3. Thermally insulated                                                               2. Heated medium

4. Uniform temperature                                                             3. Voltage and phase

5. Easy to install and remove                                                    4. Rating power

6. Highly flexible                                                                        5. Termination types

7. Long service life                                                                    6. Mounting method

                                                                                                  7. Detail dimensions or drawing

                                                                                                  8. Holes and cutouts' position


Note:The more details provided, the better it'll be designed and fits the application



Ceramic Band HeaterCeramic nozzle Band Heater




Factory Show

Mica Nozzle Band Heater stock photos
Company Style
High quality material - magnesium oxide powder
