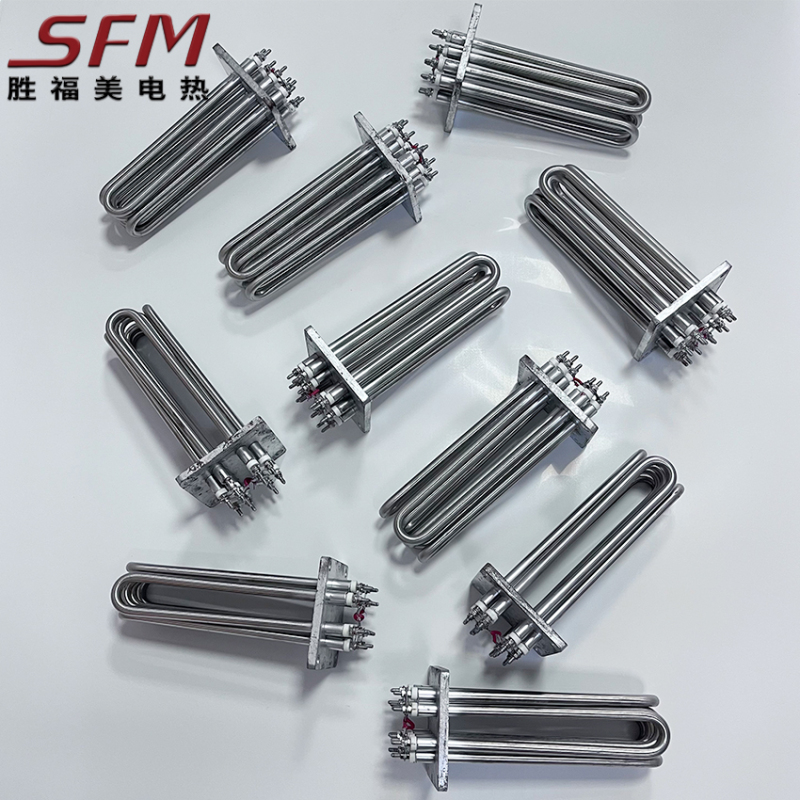

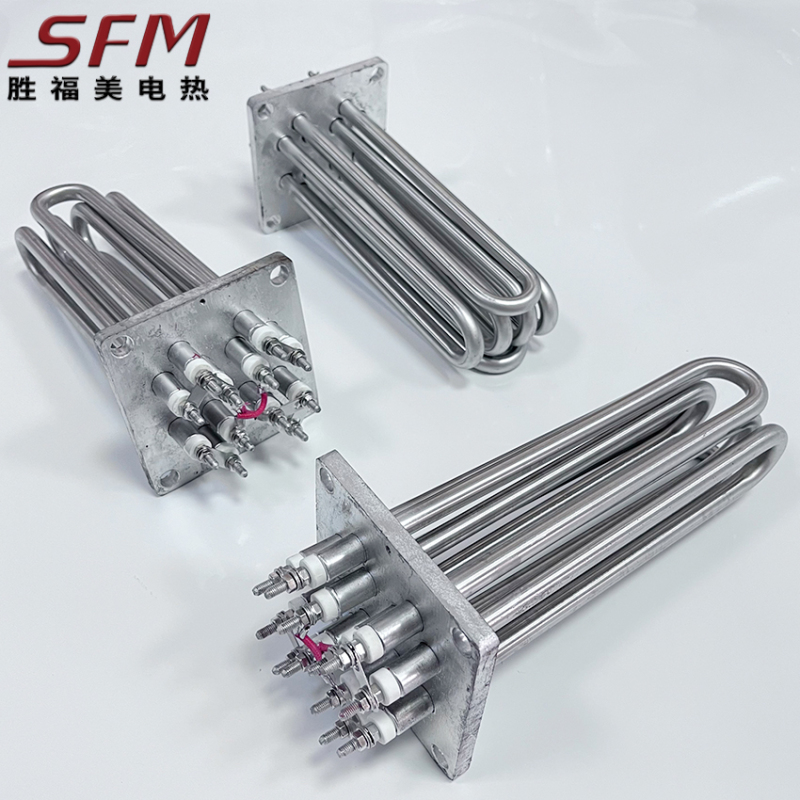

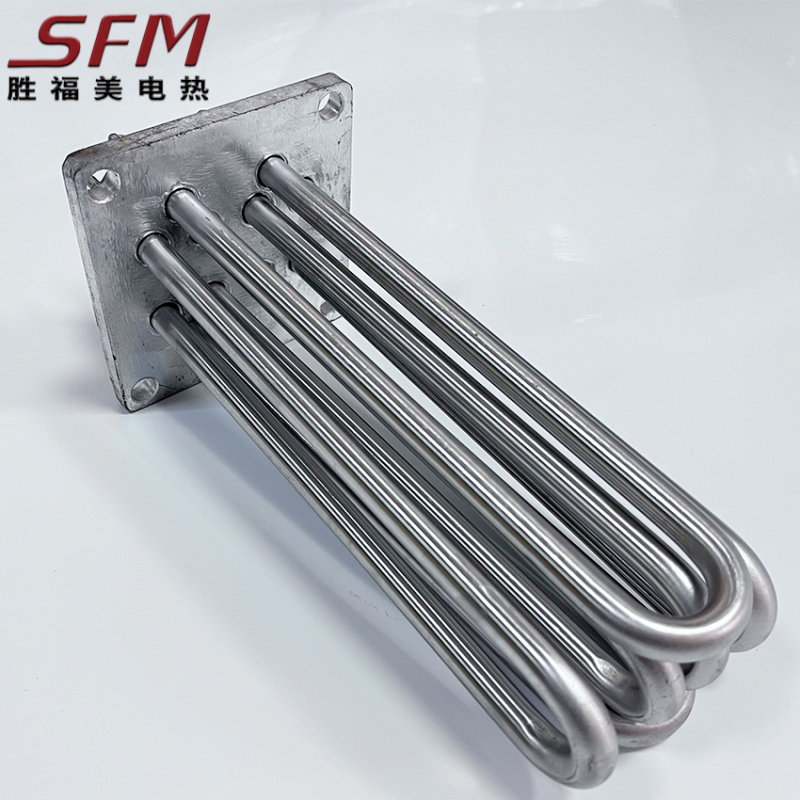

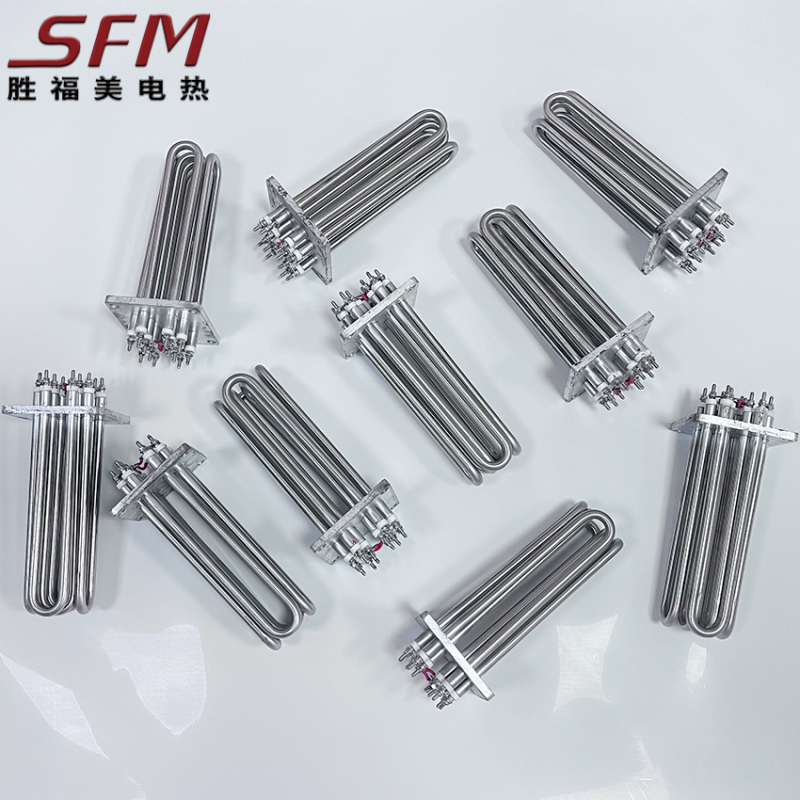

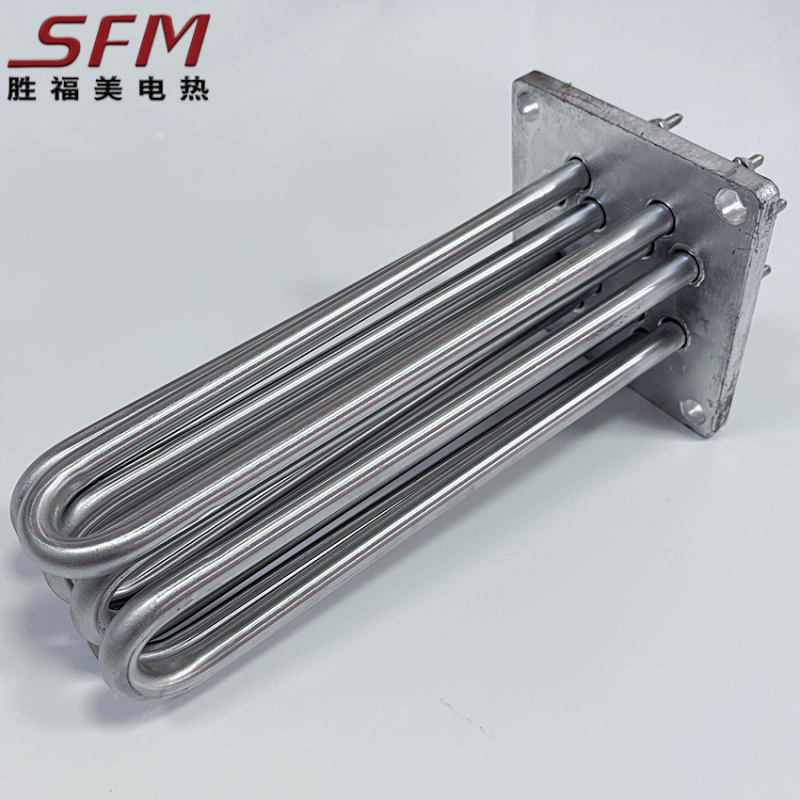

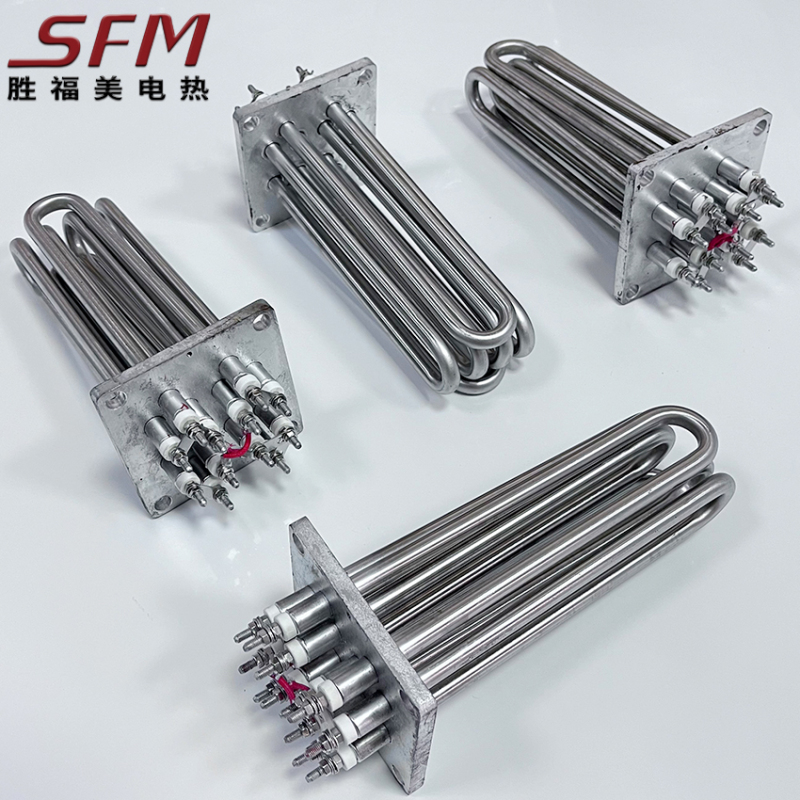

Immersion Heater Square Flange Water Heater
Stainless steel tubular heater is cylindrical electrical heating elements with two head. Protected with a stainless steel sheath. Mostly double head heater is used for heating up solids such as injection presses heating plates or various tools, double head heater can also be used for heating up water of gases under certain conditions.The choice of technology will depend on technical specifications required and the application.When you don't know exactly which product you are looking for, we will recommend you the best solution for your needs.Tubular heaters are custom designed in a various shapes to as client’s requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases
- SFM
- China
- 7-9 day
- Information
FLANGE HEATERS
Mounted on the side of tanks, it is extremely strong and provides excellent heat. Flange plate size, thickness and shape are determined by the application.
OVER THE SIDE HEATERS
A practical method of heating open tanks from the top (typically). It offers the ability to use this heater for multiple tanks while other immersion heaters can't be conveniently installed.
SCREW PLUG HEATERS
These heaters screw into your tank and provide heat to liquids in smaller tanks and compartments. They are installed into threaded openings or couplings in the tank or vessel.
CORROSIVE LIQUID HEATERS
Corrosion resistant sheath materials and special surface treatment are available so the heaters could be used in corrosive environments and have longer service life.
THERMO CONTROL
In order to achieve temperature control, overheat protection and longer life of the heaters, a thermostat or thermocouple could be integrated into the heaters.
CUSTOM NON-HEATING PARTS
No-heat parts could be customized for different applications.
Technical Parameters | |
Tube Diameter | Φ6mm ~ Φ67mm |
Voltage | 110V/220V/230V/240V/380V/415V |
Power | 1kW ~ 120kW |
Watt Density | 30W/cm² |
Wattage Tolerance | +5%, -10% |
Length Tolerance | ±1.5% |
Resistance Wire | Nickel chromium resistance wire (Ni80Cr20) |
Sheath Materials | Copper, Titanium, 304 Stainless Steel, 310 Stainless Steel, 316 Stainless Steel, Incoloy 800, Incoloy840 |
Surface Treatment | Polishing, coating, plating |
Sheath Materials | |
Sheath Materials | Application |
Copper | Water, non-corrosive liquids |
Stainless Steel | (304,310,316)：Process water, corrosive liquids, oils, acid, alcaline baths, asphalt, wax, heavy fuel, food processing equipment
|
Incoloy (800, 840) | Water, oils, asphalt, wax, heavy fuel |
Titanium | Highly corrosive liquids |
Features
1. Virtually 100% energy efficient
2. Provide uniform temperature
3. Can be formed and shaped into various geometries
4. Easy to install, remove and maintain
5. Oxidation and corrosion resistant
6.Durable
Design Details
Please provide the following information:
1. Heating medium and operating temperature
2. Voltage and phase
3. Rating power
4. Mounting method
5. Sheath material
6. Detail dimensions
7. With or without temperature control
Note：The more details provided, the better it'll be designed and fits the application
