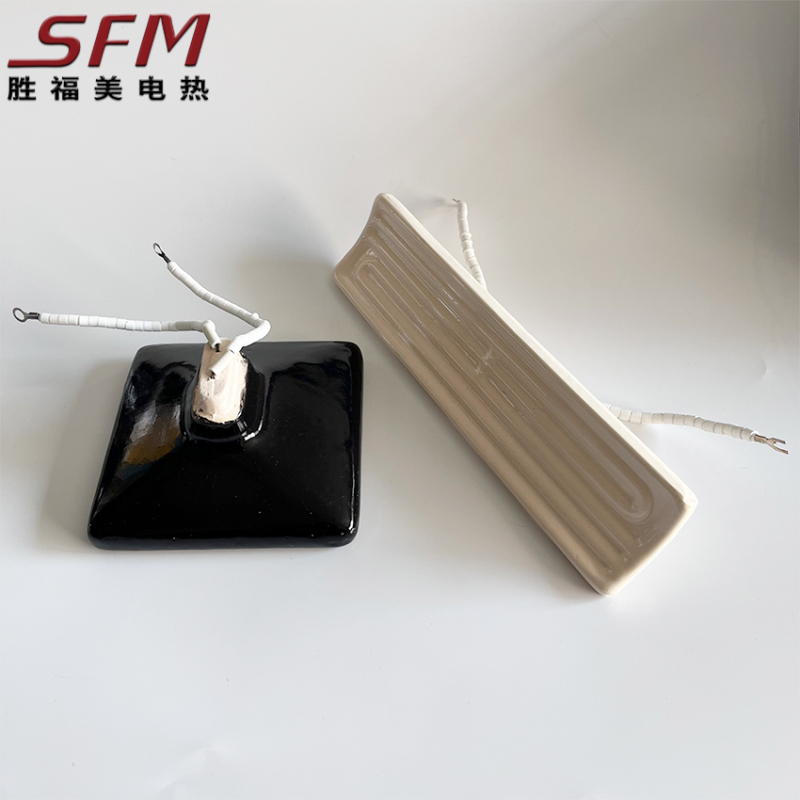

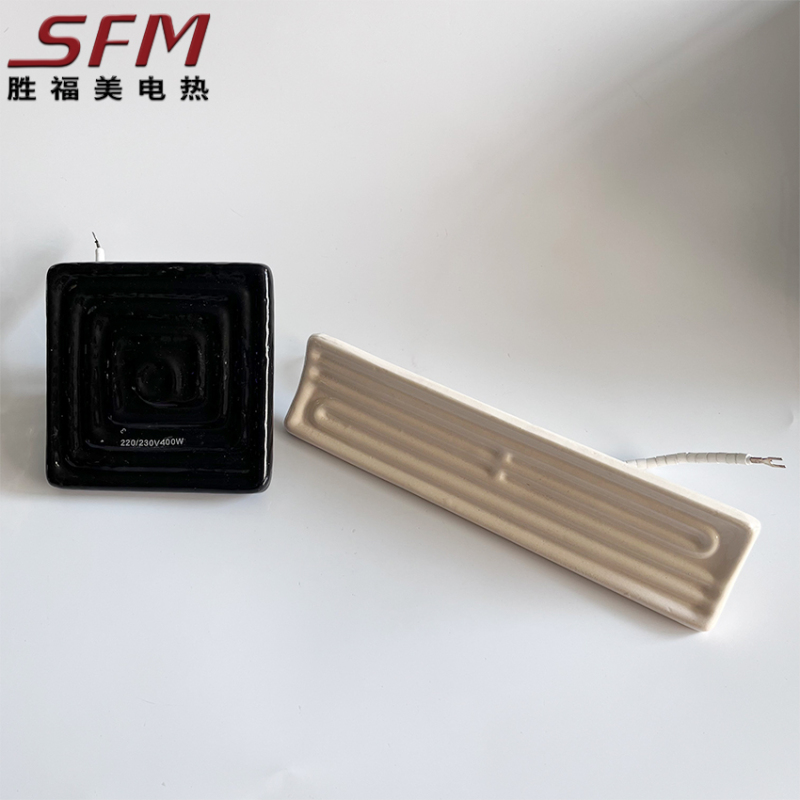

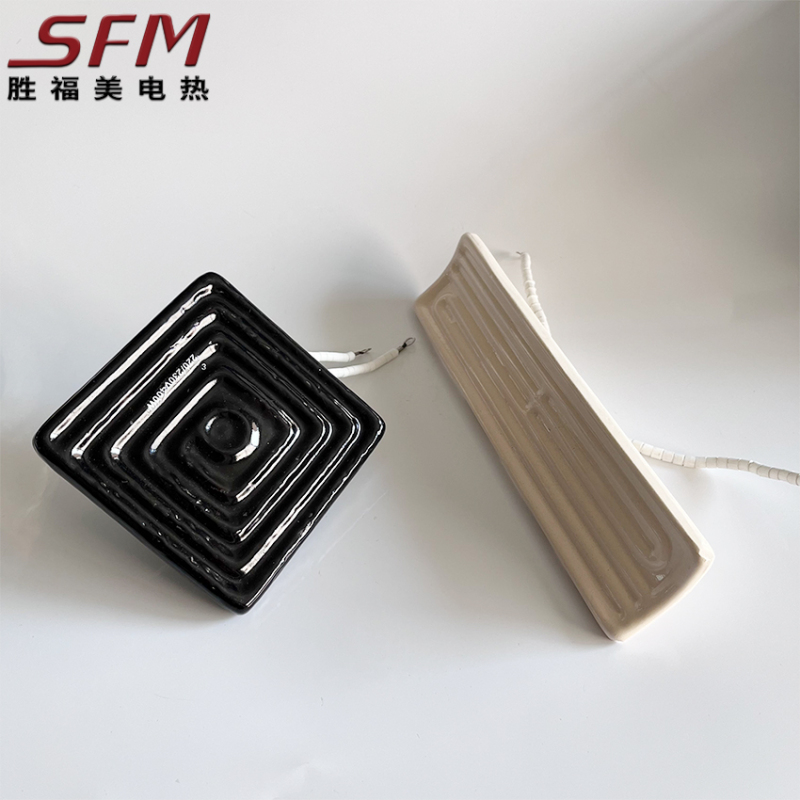

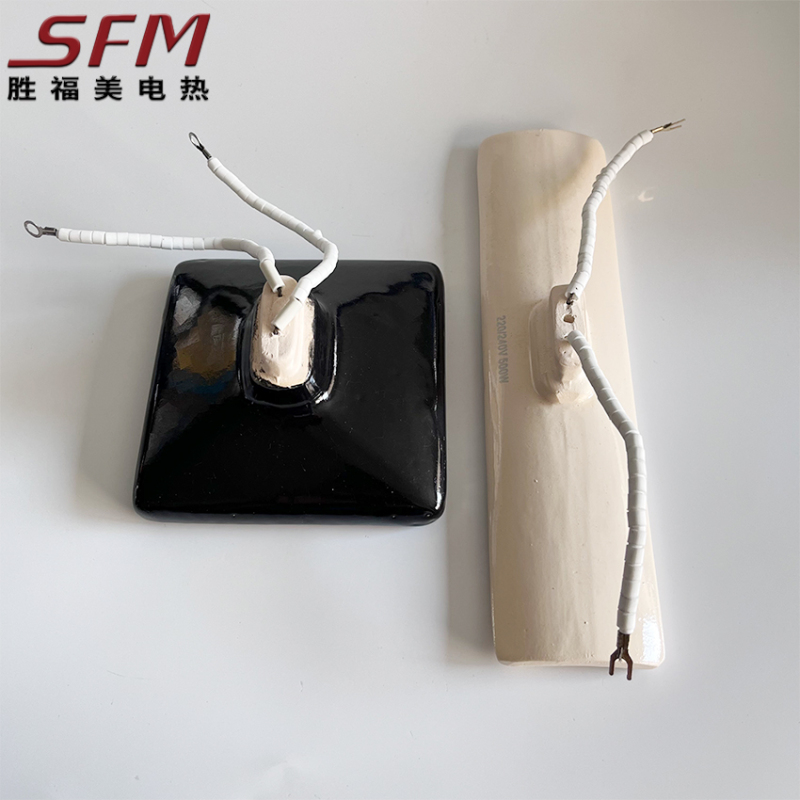

Industrial Used Flat Type Infrared Ceramic Heater

1,Operating temperature is 300°C to 700°C (572°F - 1292°F)
2,Average Operating Life-Up to 20,000 hrs depending on conditions.
3. Recommended radiation distance from heater is 100 mm to 250 mm.
4,Supplied with 100mm ceramic beaded power leads

  • SFM
  • china
  • 5-7 day
  • Information

heater plate ceramicElectric Ceramic Far Infrared Heating Element Plate

The far-infrared ceramic heating plate is coated with a high-radiation ceramic glaze layer, and a new energy-saving heating plate designed by using quartz ceramic with good thermal shock resistance as a raw material.

Although the ceramic heating plate on the market is cheap, the appearance is rough, and ordinary clay is used, which is brittle and fragile, and has a short service life. The quality of our far-infrared ceramic heating plates is no less than the international brand elstien. Our factory supports the production of ceramic heating plates with special requirements of different shapes, colors, sizes, power voltages and so on.

Product advantages:

1. The flexural strength can reach 440KG/cm2;

2. The resistivity of the component at room temperature can reach 1012 Ω.m;

3, good chemical stability, strong corrosion resistance, good anti-oxidation effect

4, the use of the Central African radiation surface heat loss is less;

5. The substrate is heated to 800 ° C and placed in cold water several times without cracking;

6, the maximum radiance of the radiating element can reach 0.9;

7, energy saving effect can be increased by 10-35% than silicon carbide components;

8, the service life is more than several times longer than the silicon carbide component;

Infrared Ceramic Heater


Size

Wattage

Voltage

Thermocouple

Operating Temperature

Shapes

60*60mm

















100-1500W(customizable)

















110V

220V

380V



















Optional

K or J Type

















 300C-700C

















 Trough, Hollow and Flat

120*60mm

240*60mm

100*100mm

120*120mm

125*125mm

240*80mm

210*100mm

180*70mm

180*180mm

300*70mm

220*140mm

250*200mm

300*200mm

350*105mm

200*80mm

190*95mm

 Infrared Ceramic plate Heater




Factory Show

Mica Nozzle Band Heater stock photos
Company Style
High quality material - magnesium oxide powder
