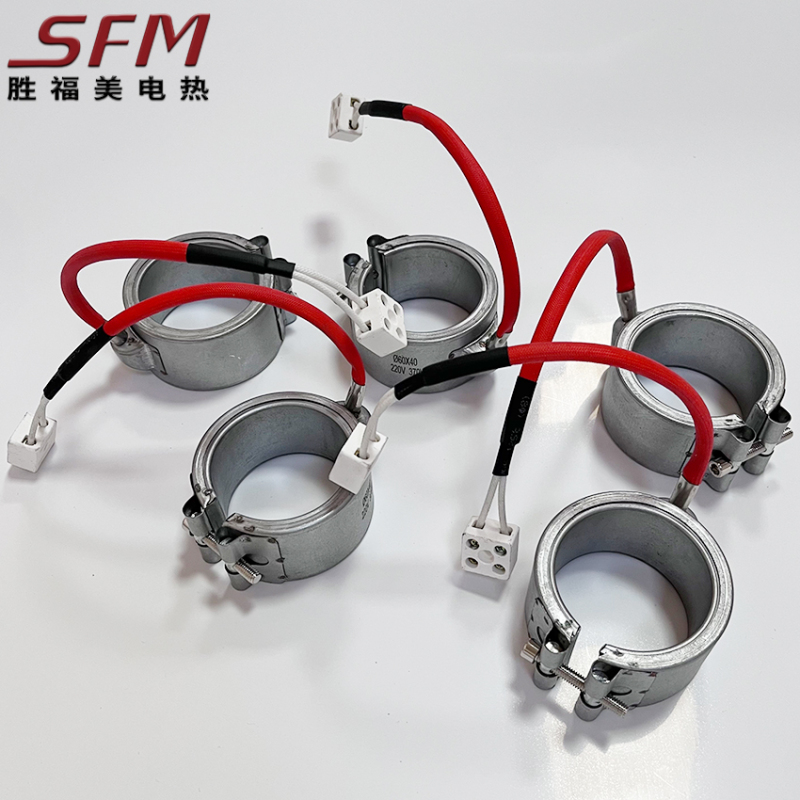

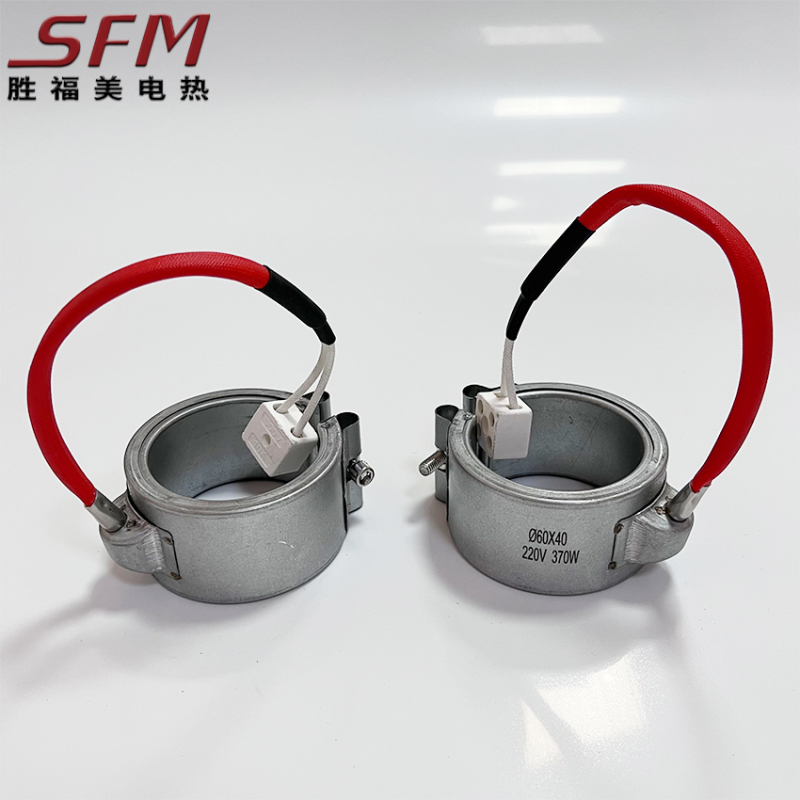

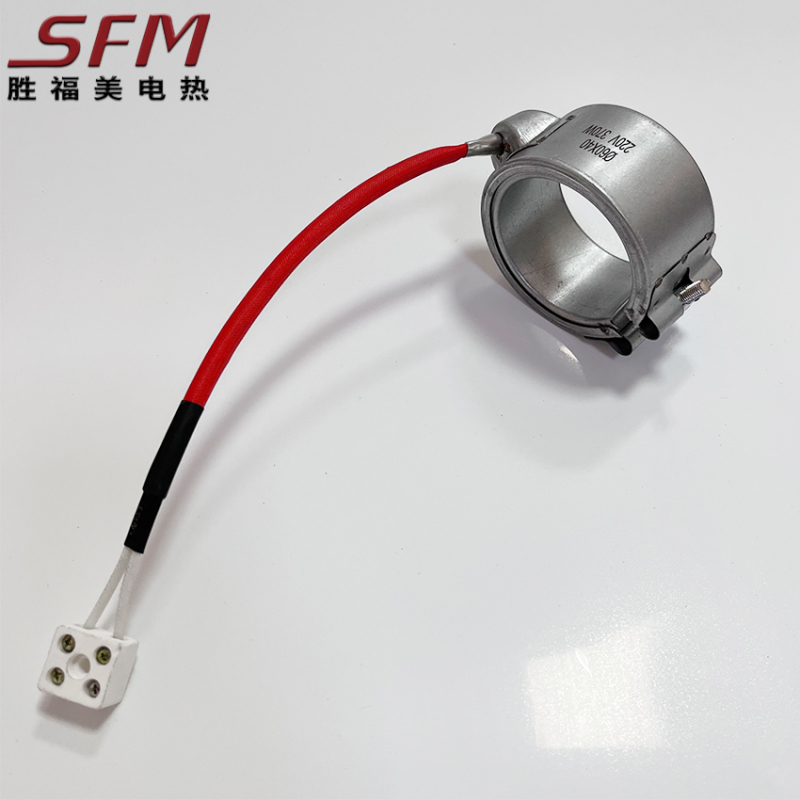

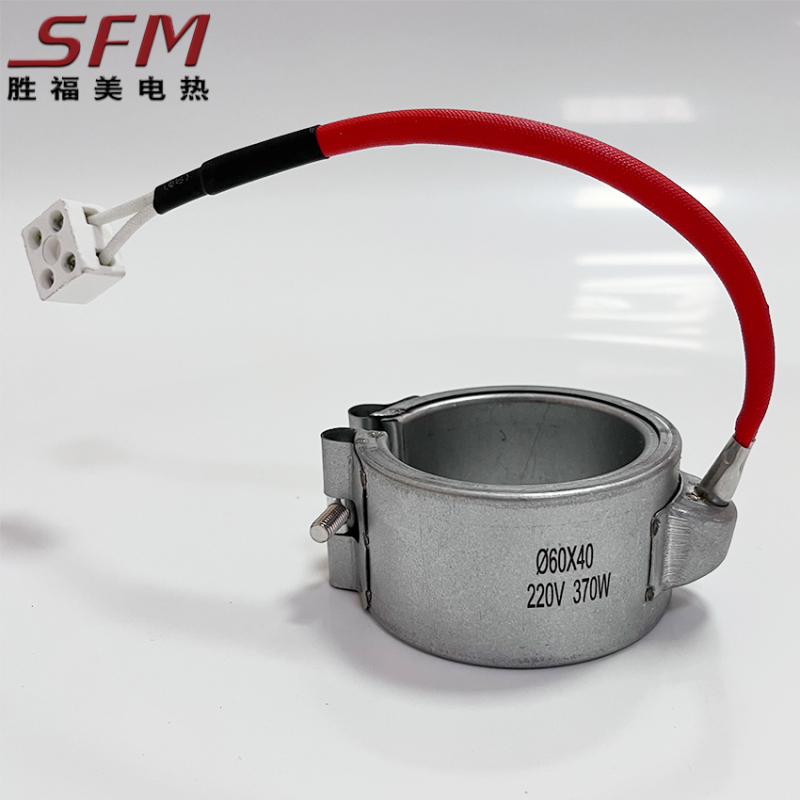

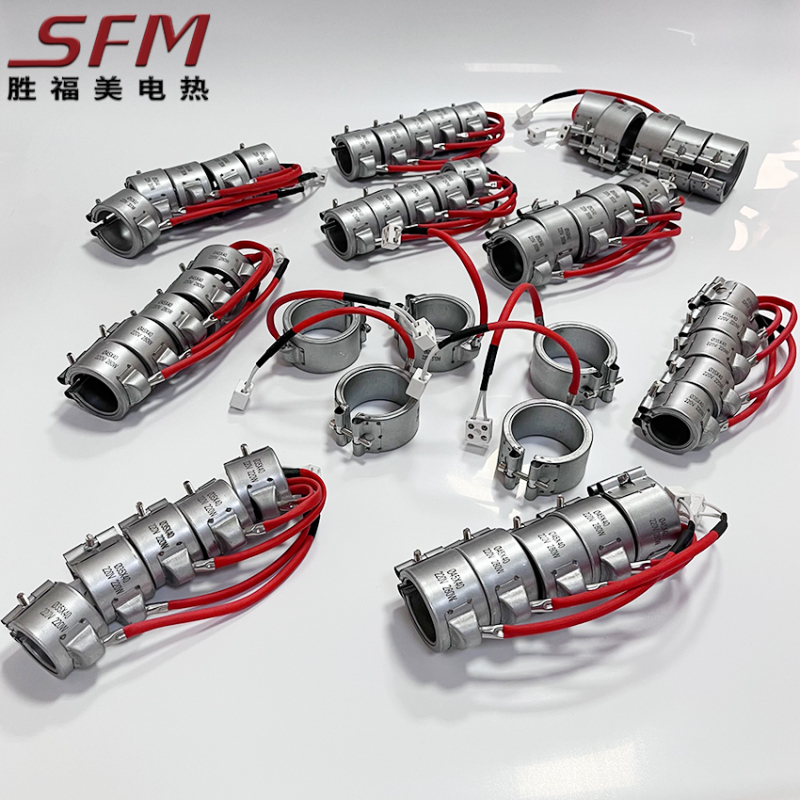

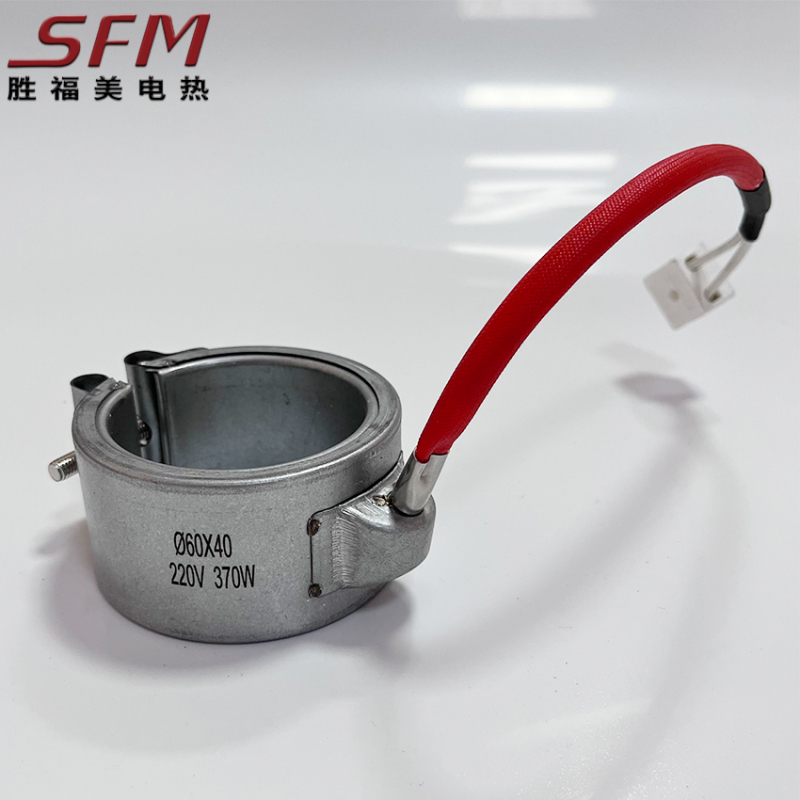

Injection Molding Machine Ceramic Nozzle Band Heater

Factory space heating element molding machine ceramic band heater Ceramic band heaters are versatile and highly energy efficient. Our Ceramic band heaters are widely used for extruders, tanks and in a broad range of other industrial applications

  • SFM
  • China
  • 2-7 day
  • Information

CERAMIC  Nozzle BAND HEATER

Ceramic band heaters are designed with spirally wound inner resistance coils evenly threaded through interlocking insulated ceramic "tiles". The ceramic core of tiles is housed beneath a stainless steel sheet with serrated edges. Typical applications are plastic molding, extrusion and molding presses



Applications

Typical application such as blow molding machines, drum heating, extrusion die, plastic injection molding machines, vending machines, food service warming pots, food service warming pots etc



NON-STANDARD LOCATION OF LEADS OR TERMINALS

Terminations could be offset, paralleled, centered, or at each end. Lead wires are available.

Leads or terminals may be located at any reasonable place along the heater for applications where standard connections may be inaccessible.



HOLES AND CUTOUTS

Mounting holes locations could be customized. Please provide drawing for hole dimensions and locations.



ONE PIECE OR TWO PIECE CONSTRUCTION

2 Piece construction is very suitable for locations where 1 piece is difficult to be installed.

2 Piece construction is available with any termination or clamping styles.

Ceramic Nozzle Band Heater


                               Technical  parameters

Voltage

110V/220V/230V/240V/380V/415V

Power

Customized

Cold Withstand Voltage

AV2000V/ 0.75mA/ 3s

Hot Leakage Current

≤2mA

Wattage Tolerance

+5%, -10%

Max. Watt Density

3.5W/cm² (Standard 3W/cm²)

Resistance Tolerance

+10%, -5%

Max. Temperature

600℃ - Ceramic

Nozzle Band Heater

                              Main Materials

Sheath

Stainless steel 304

Resistance Wire

Ni80Cr20

Insulation

Ceramic

Lead Wire

Fiberglass (steel protective sleeve, steel hose & braid are available)

Terminal

Thread, ceramic, metal box, plug

Ceramic Band Heater

Features

1. Energy efficient, less power consumption

2. Provide uniform heat distribution

3. Thermally insulated

4. Uniform temperature

5. Easy to install and remove

6. Highly flexible

7. Long service life

Design Details

Please provide the following information:

1. Operating temperature

2. Heated medium

3. Voltage and phase

4. Rating power

5. Termination types

6. Mounting method

7. Detail dimensions or drawing

8. Holes and cutouts' position

Note:The more details provided, the better it'll be designed and fits the application



Factory Show

Mica Nozzle Band Heater stock photos
Company Style
High quality material - magnesium oxide powder
