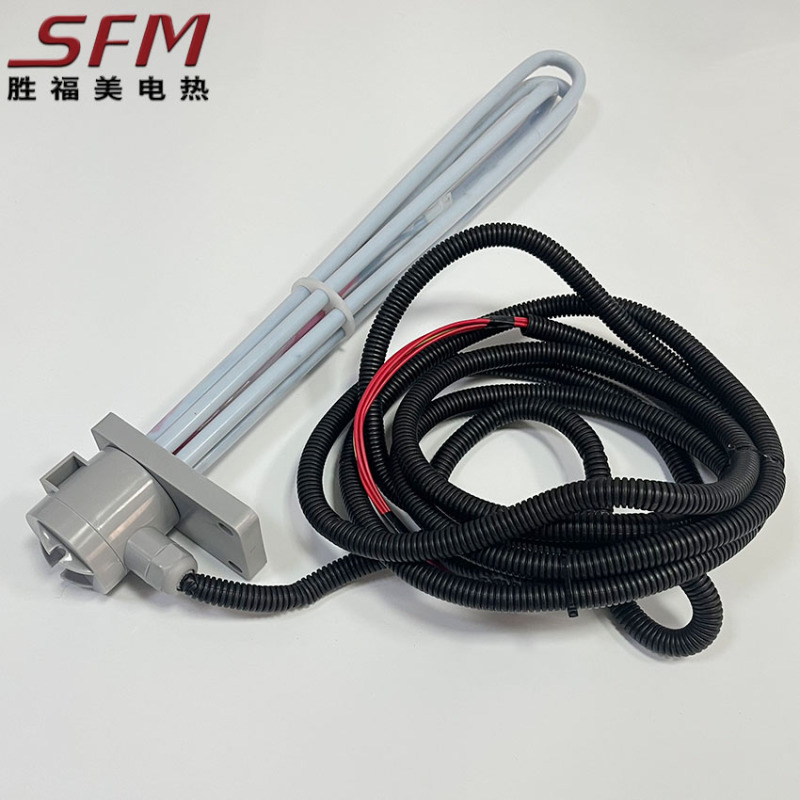

Teflon heater is used in electroplating equipment, circuit board equipment, chemical equipment, surface treatment equipment, various corrosive, gas and liquid heating (such as trioxide polishing, electroless gold plating, electroless silver plating, electroless nickel plating and heating of various high-demand chemical solutions). Our factory has rich manufacturing experience in mosquito repellent Teflon heater. According to different use environments, we carry out scientific structural design to improve the safety and long service life of the heater.
● Teflon heater fluoroplastic (PTFE) is made of imported raw materials such as Teflon and flon. It is used in highly corrosive liquids such as strong acid and alkali.
● adopt advanced pipe making equipment and processing technology to improve the surface load of the pipe body, 1.5-2.5 / cm2, and increase the heat dissipation effect.

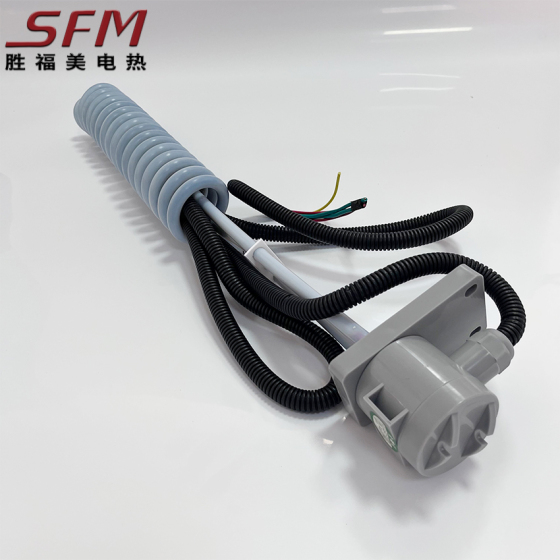

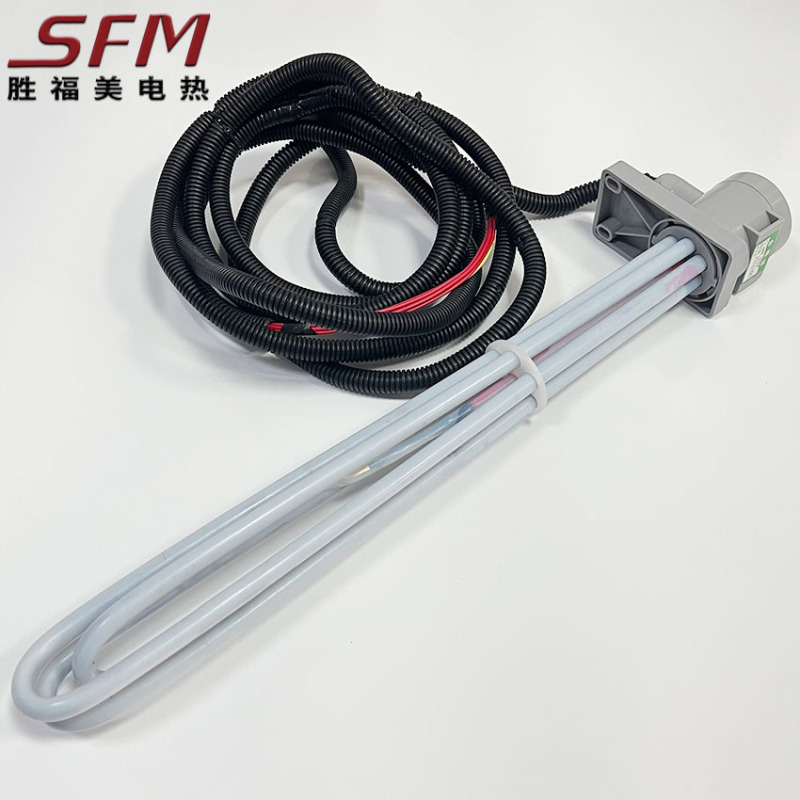

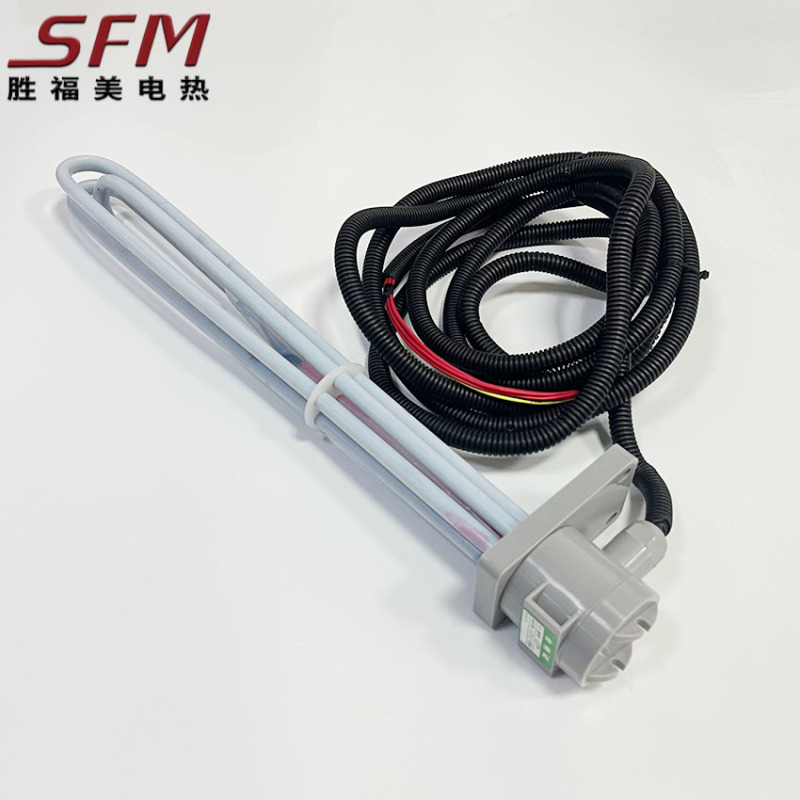

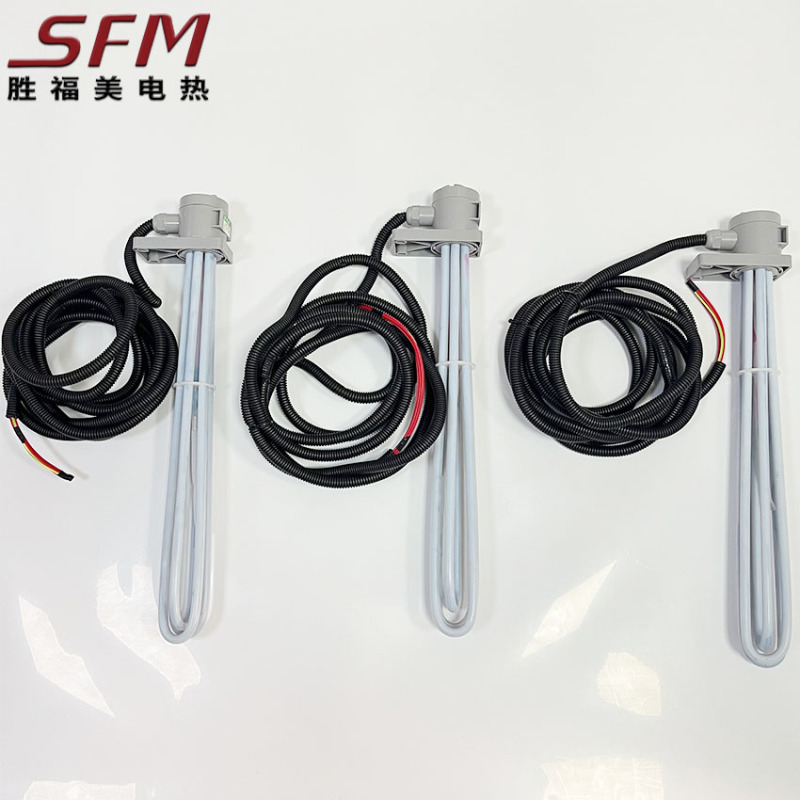

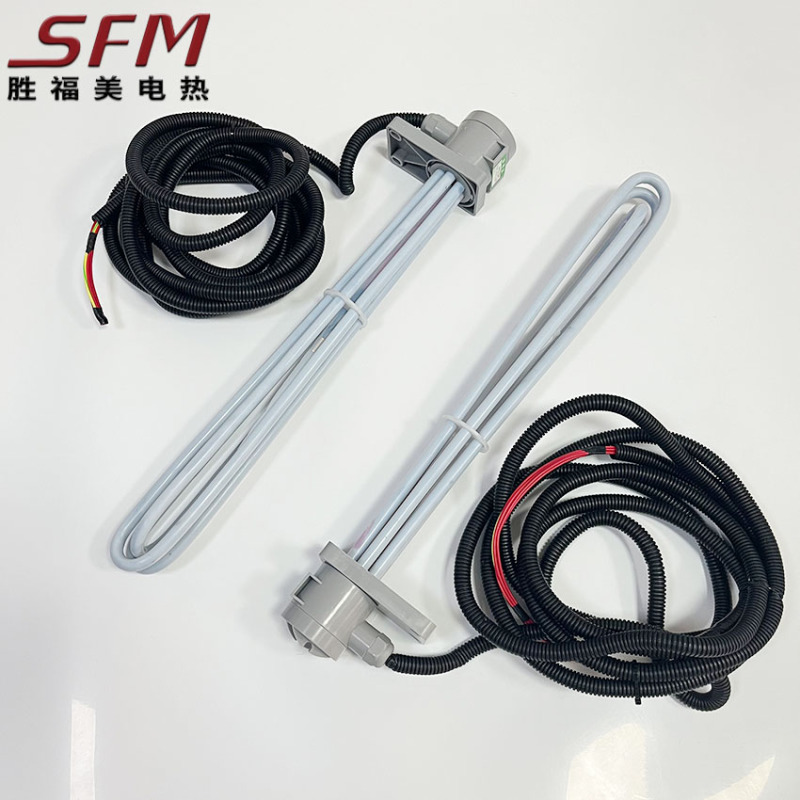

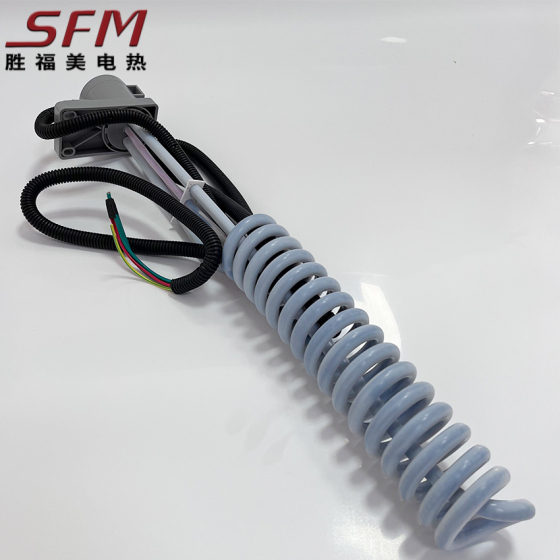

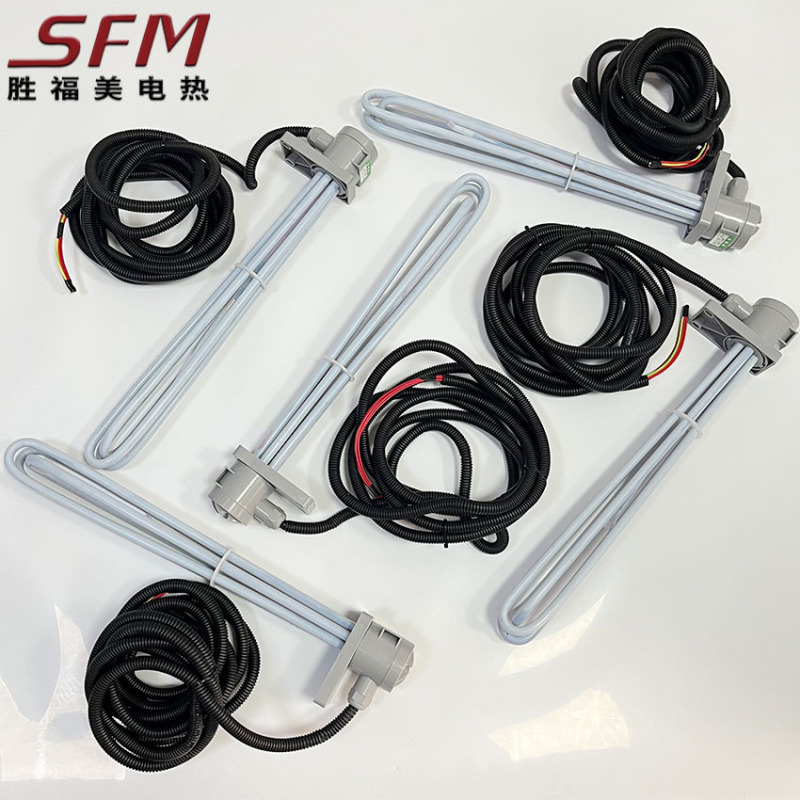

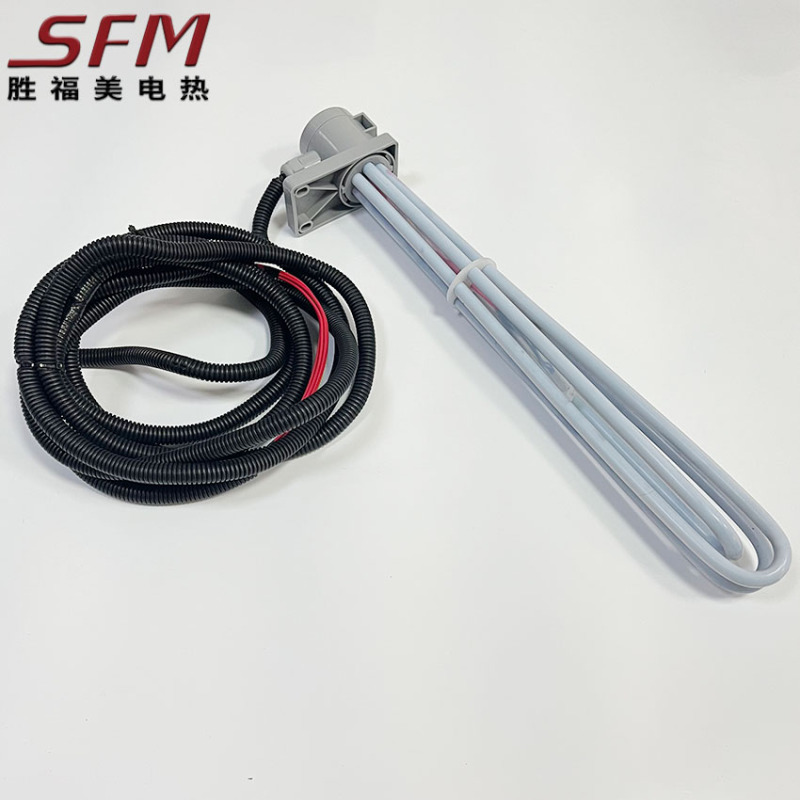

● diversified structural design, such as spiral type, L-type, U-type, W-type, mosquito repellent incense type and combined type, to meet the different use environments of our customers.
● excellent material, advanced technology and CE standard process ensure that Teflon heater has good electrical performance and long service life.
● attention shall be paid to the installation position of the heater to prevent deposits in the solution on the surface of the electric heater. If the liquid level is too low, it will burn out the Teflon (PTEF) due to poor surface heat dissipation.
● all electric heaters can be equipped with overheat protector or PT100 temperature probe to ensure product service life and equipment safety.
item | value |
Applicable Industries | Acid base solution, Corrosive solution |
After Warranty Service | Video technical support |
Local Service Location | China |
Showroom Location | China |
Condition | New |
Power Source | Electric |
Place of Origin | China-Guangdong |
Weight | 1-3KG |
Voltage | 200V~440V |
Warranty | 1 Year |
Working Temperature Range | 1℃ - 100℃ |
Material | Teflon |
Key Selling Points | Strong corrosion resistance |
Marketing Type | New Product 2023 |
Warranty of core components | 1 Year |
Core Components | Electric heating wire, Magnesia powder, stainless steel, Teflon |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Heat intensity | Not exceeding 30w/cm2 (advisable) |
Exhaust extreme (when cold) | <=0.1mA to 242 v. |
Insulation (when cold) | 5 Min Ohms 500 Watts minimum |
Dielectric strength | 1500v. 1/sec |
Working temperature | 1050 Deg C max. |
Length tolerance | +/-1.5% |
Diameter tolerance | -0.02 to -0.06 mm |
Cut off connection tolerance | +/-15 mm |
Power tolerance (w) | -0.05 |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Tube diameter | Φ8.5mm-Φ22mm |
Voltage and power | customized |
Warranty | one year |
All specifications can be customized as your request! |
