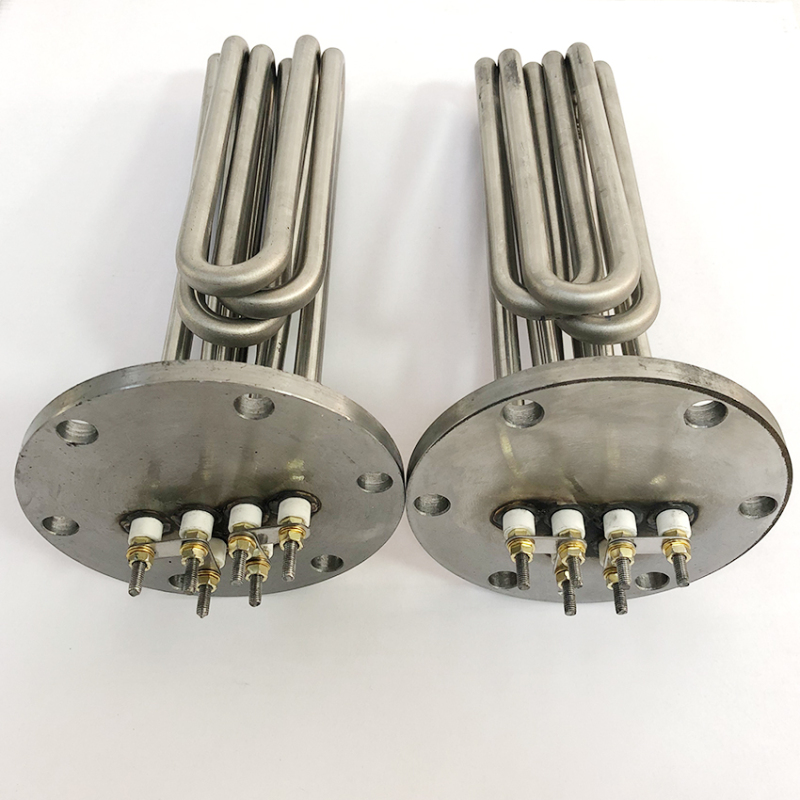

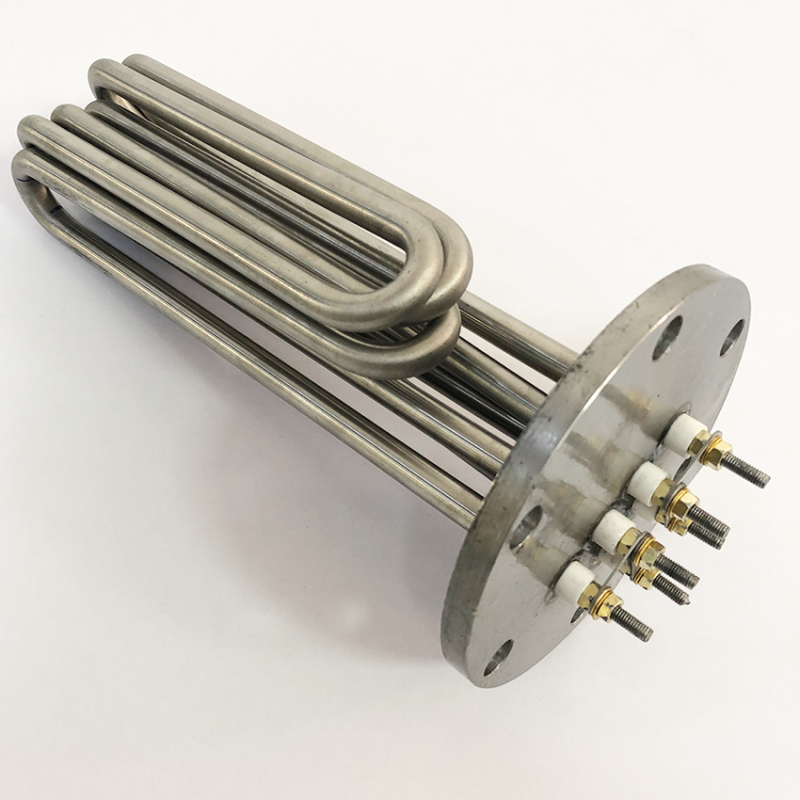

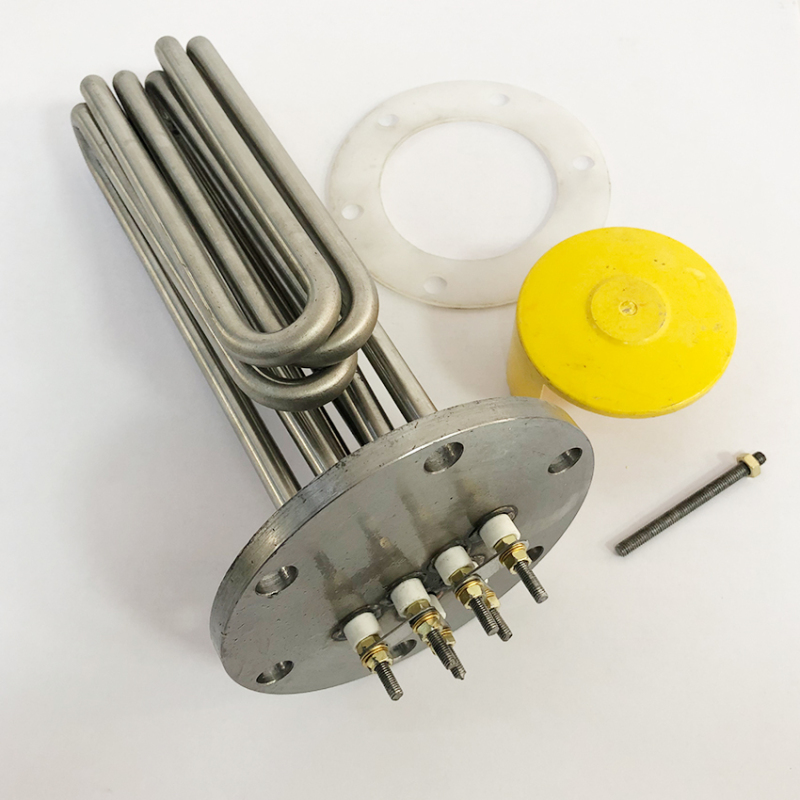

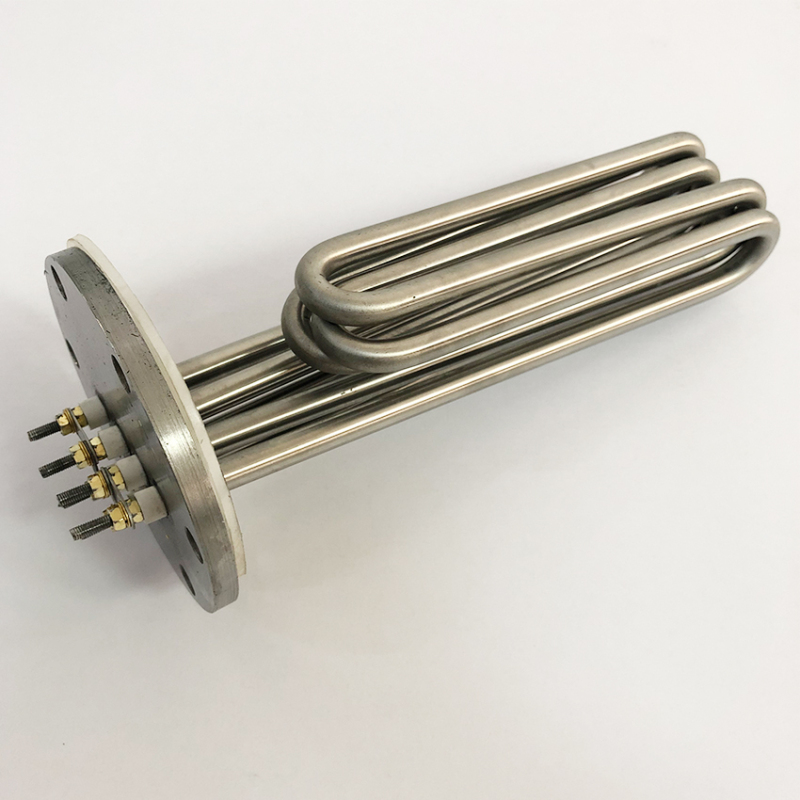

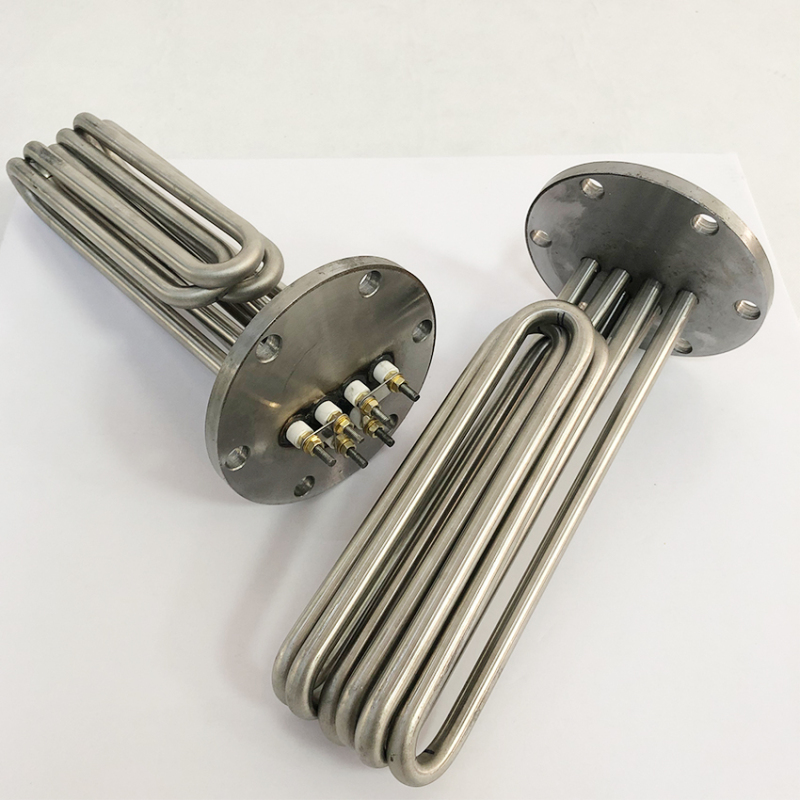

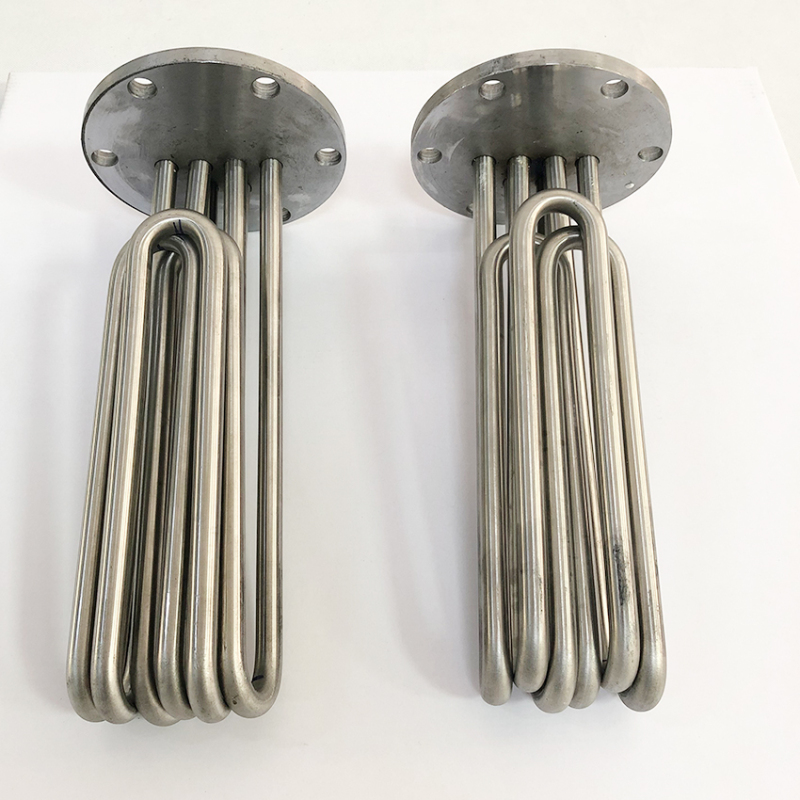

9-Element Flange Immersion Heater With Offset

Industrial electric water tubular water Immersion flange heater with temperature control are directly through a threaded opening in a tank wall or through a matching pipe coupling or half coupling. Sizes of screw plug heaters are available with 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2" pipe threads. A wide selection of screw plug sizes, kilowatt ratings, voltages, sheath materials, terminal enclosures and thermostats makes these compact heaters ideal for all types of applications

  • SFM
  • china
  • 7-9 day
  • Information

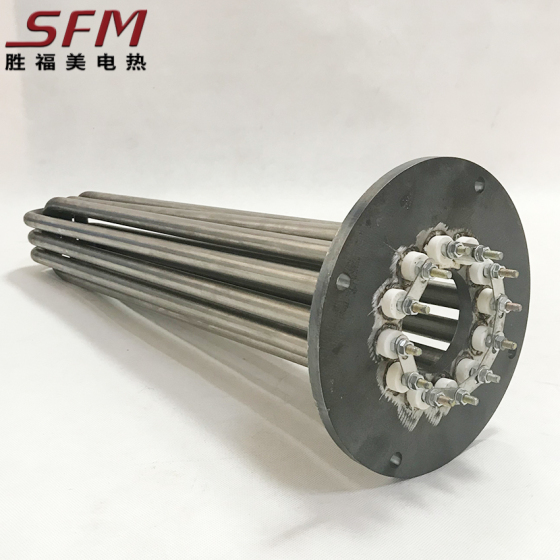

round flange heater

FLANGE HEATERS

Mounted on the side of tanks, it is extremely strong and provides excellent heat. Flange plate size, thickness and shape are determined by the application.



OVER THE SIDE HEATERS

A practical method of heating open tanks from the top (typically). It offers the ability to use this heater for multiple tanks while other immersion heaters can't be conveniently installed.



SCREW PLUG HEATERS

These heaters screw into your tank and provide heat to liquids in smaller tanks and compartments. They are installed into threaded openings or couplings in the tank or vessel.



CORROSIVE LIQUID HEATERS

Corrosion resistant sheath materials and special surface treatment are available so the heaters could be used in corrosive environments and have longer service life.



THERMO CONTROL

In order to achieve temperature control, overheat protection and longer life of the heaters, a thermostat or thermocouple could be integrated into the heaters.



CUSTOM NON-HEATING PARTS

No-heat parts could be customized for different applications.

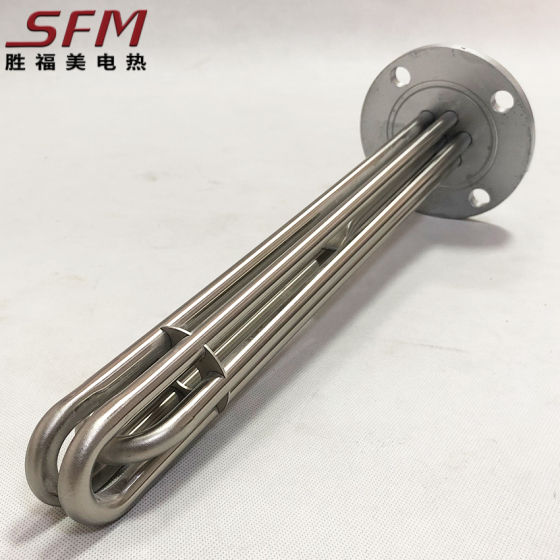

flange heater



Technical Parameters

Tube Diameter

Φ6mm ~ Φ67mm

Voltage

110V/220V/230V/240V/380V/415V

Power

1kW ~ 120kW

Watt Density

30W/cm²

Wattage Tolerance

+5%, -10%

Length Tolerance

±1.5%

Resistance Wire

Nickel chromium resistance wire (Ni80Cr20)

Sheath Materials

Copper, Titanium, 304 Stainless Steel, 310 Stainless Steel,

316 Stainless Steel, Incoloy 800, Incoloy840

Surface Treatment

Polishing, coating, plating

Immersion Heater

Sheath Materials

Sheath Materials

Application

Copper

Water, non-corrosive liquids

Stainless Steel

(304,310,316):Process water,

corrosive liquids, oils, acid,

alcaline baths, asphalt, wax,

heavy fuel, food processing equipment



Incoloy (800, 840)

Water, oils, asphalt, wax, heavy fuel

Titanium

 Highly corrosive liquids

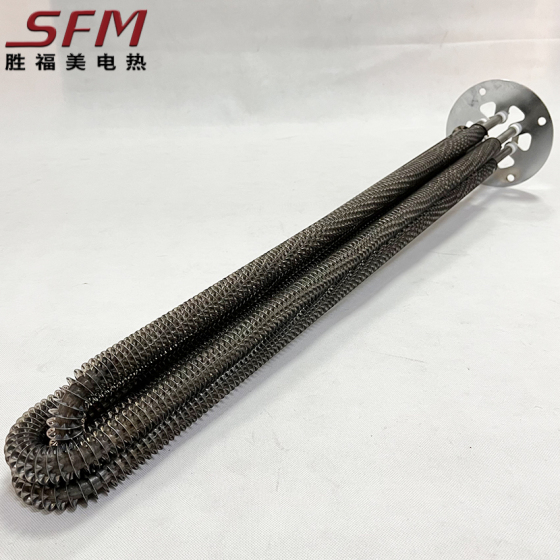

round flange heater


Features



1. Virtually 100% energy efficient



2. Provide uniform temperature



3. Can be formed and shaped into various geometries



4. Easy to install, remove and maintain



5. Oxidation and corrosion resistant



6.Durable

flange heater



Design Details



Please provide the following information:



1. Heating medium and operating temperature



2. Voltage and phase



3. Rating power



4. Mounting method



5. Sheath material



6. Detail dimensions



7. With or without temperature control



Note:The more details provided, the better it'll be designed and fits the application

Immersion Heater



Factory Show

Mica Nozzle Band Heater stock photos
Company Style
High quality material - magnesium oxide powder
