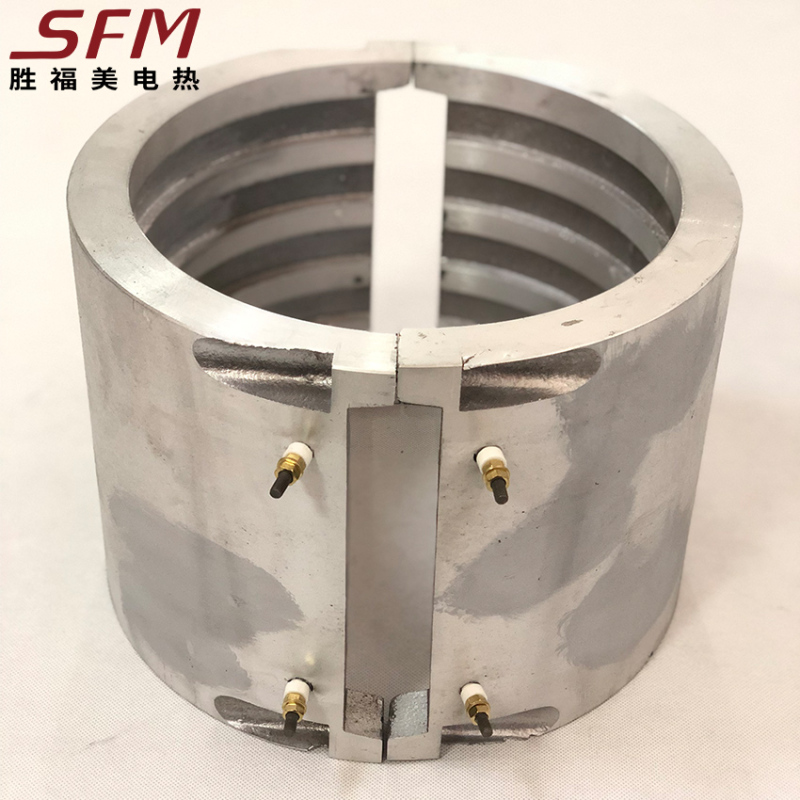

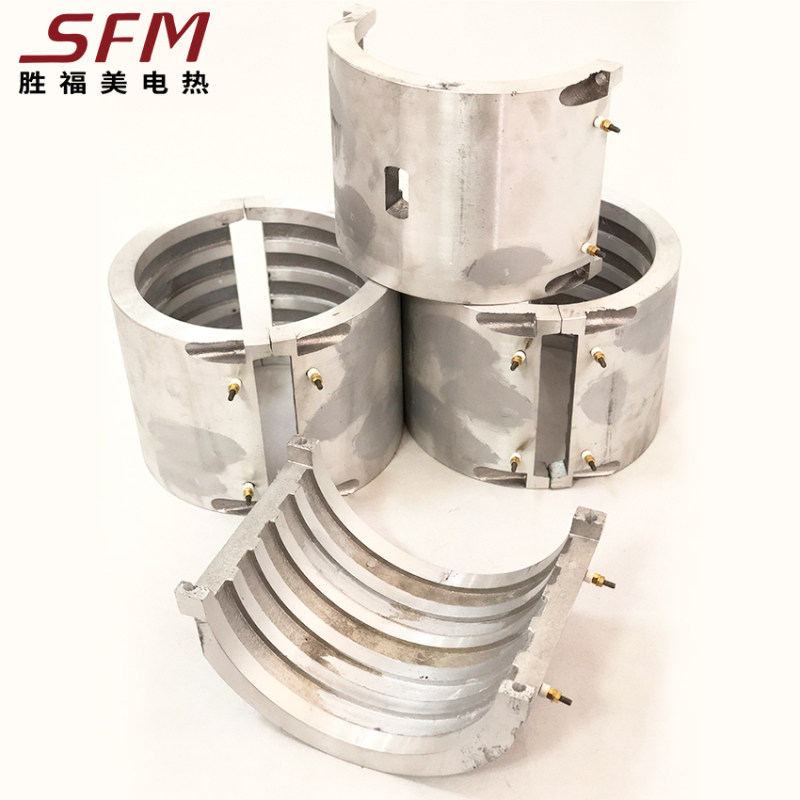

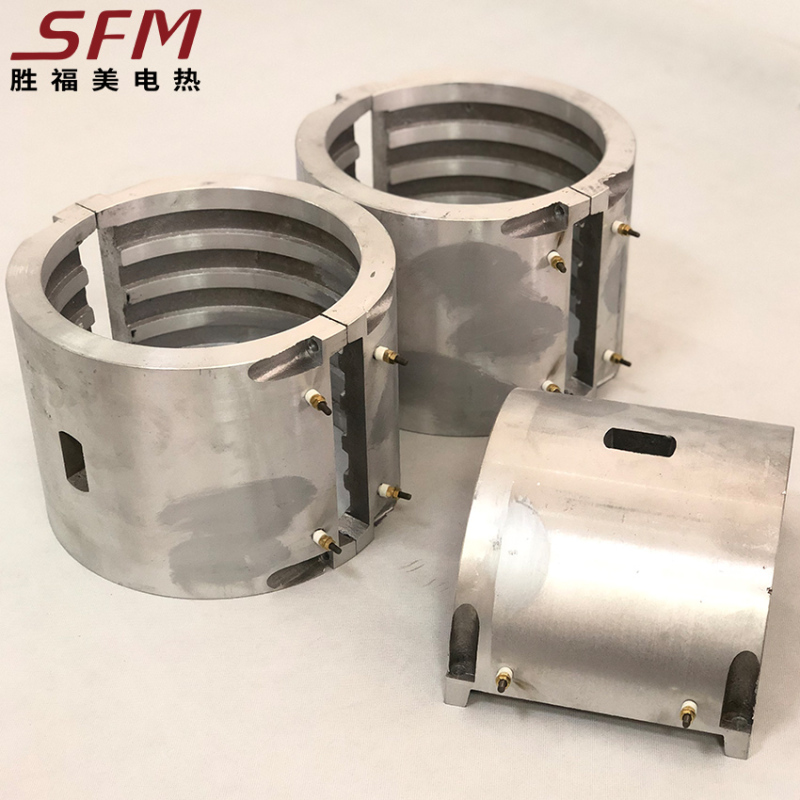

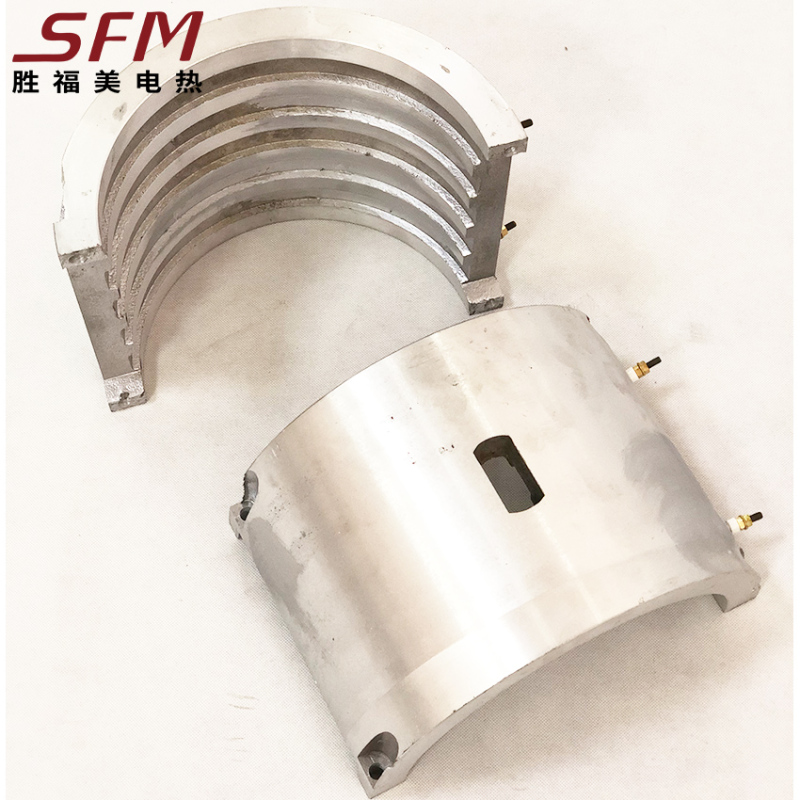

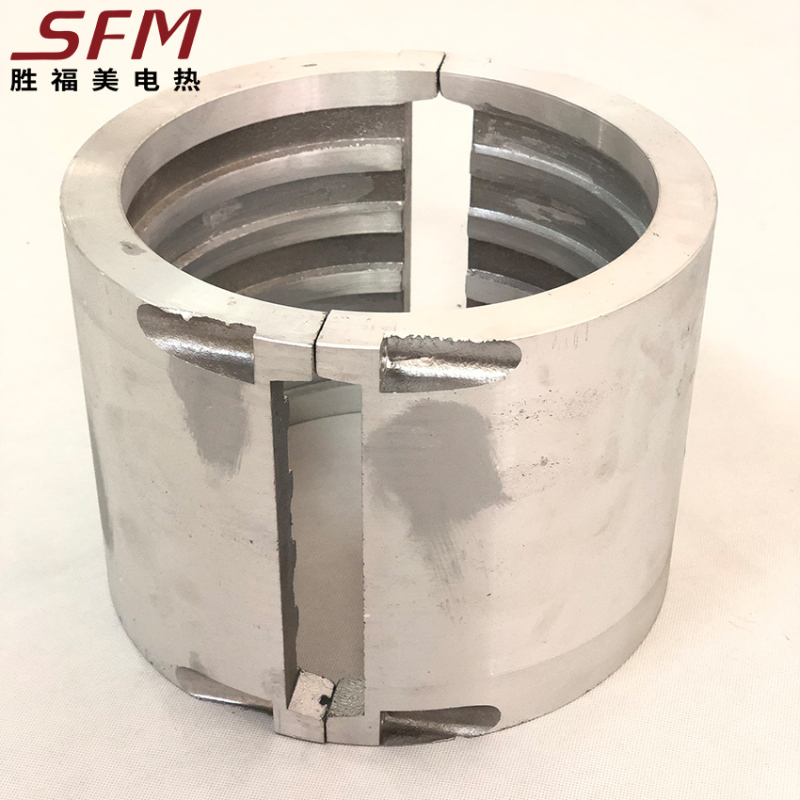

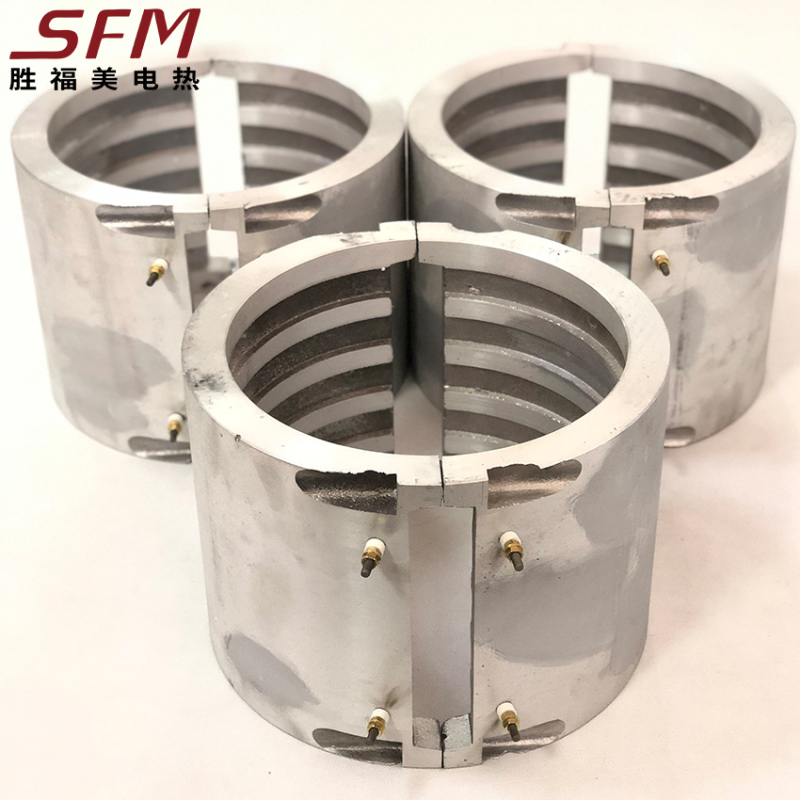

Inner Air Channel Cast aluminum Band Heater

1:Gravity moulding ensures an excellent material homogeneity and thus a perfect heat transfer.
2:Constant surface temperature is achieved through appropriate forming
3: As this is indirect heating, the heating, the heating resistance is protected. The solid or fluid to be heated is not in contact with the resistance

  • SFM
  • China
  • 10-15 day
  • Information

Cast Aluminum Heater Description:

Cast in aluminum heater is mainly used for extrusion and casting moulding machines. It has a wide application in various machinery industries. The operation temperature can reach up to 300°C (Aluminium). In order to concentrate the heat to one direction on the injection face, the other sides of the product are covered by heat retention and heat insulation materials. So it has advantages such as advanced technology, high heat retention, long lifetime, anti-pollution, etc. It is widely used in plastic extrusion, chemical fibre, blowing moulding machines

Castaluminum Band Heater

Product Name

Die Casting Aluminum Band Heater

Thickness

20mm, 30mm, 35mm, or customized

Working Temperature

Normal temperature 350 degree,max 400 degree

Voltage

120V, 240V, 480V, 600V or customized

Power

50-2000W, or customized

Shape

round, flat, rectangular, square,air-cooled, water-cooled and other shapes

Wattage Tolerance

+5%, -10%

Resistance tolerance

+10%, -5%

Leakage current

<0.5MA

Insulation resistance

> 2MΩ

Material

Aluminum, brass, bronze or cupronickel alloy

Band Heater

Cast In heaters for all plastics processing applications including, air and liquid cooled barrel heaters, L-shaped heaters, vent cut out heaters, heat only cast in barrel heaters, air cooled with shroud, hollow cast nozzle heaters, and cooling jackets for cast in barrel heaters.

Cast band heaters (Cast-in) are available in Aluminium (400ºC), Brass (600ºC) and Bronze (700ºC). Cast aluminium water-cooled units are the most common. The casting contains both Incoloy sheathed heating elements and stainless steel cooling tubes. The heaters are available with bolt clamping or separate stainless steel strap clamping. Heating elements are supplied standard with threaded stud terminals for electrical connections. Sheet metal terminal boxes and other termination options are available.

Castaluminum Heater

Order Guide

Please specify the following when ordering.

1:The inner diameter (mm) and length (mm) of heaters

2:Thickness of heaters

3:Terminal length (max & min) and the distance of terminal length

4:The diameter, length of cooling tubes and the distance between them.

5:Voltage and power density

6:Gap of two pieces if applicable

7:Wiring type and position

8:Whether need air blowers

9:Content of the stamping if needed

10:Order quantity

11:Delivery date

** It’s better to provide us with the drawings/pictures
