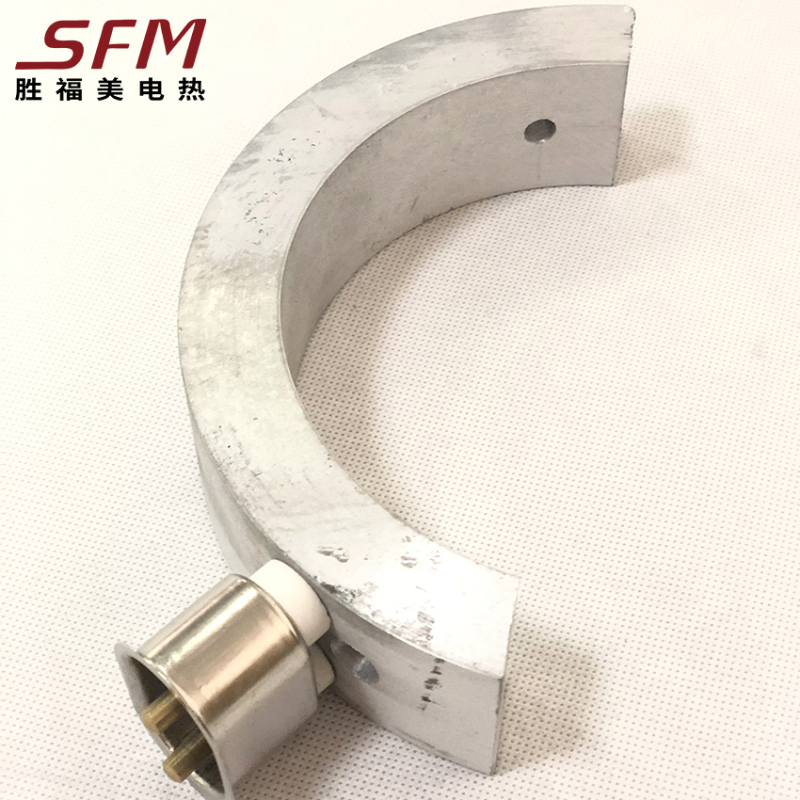

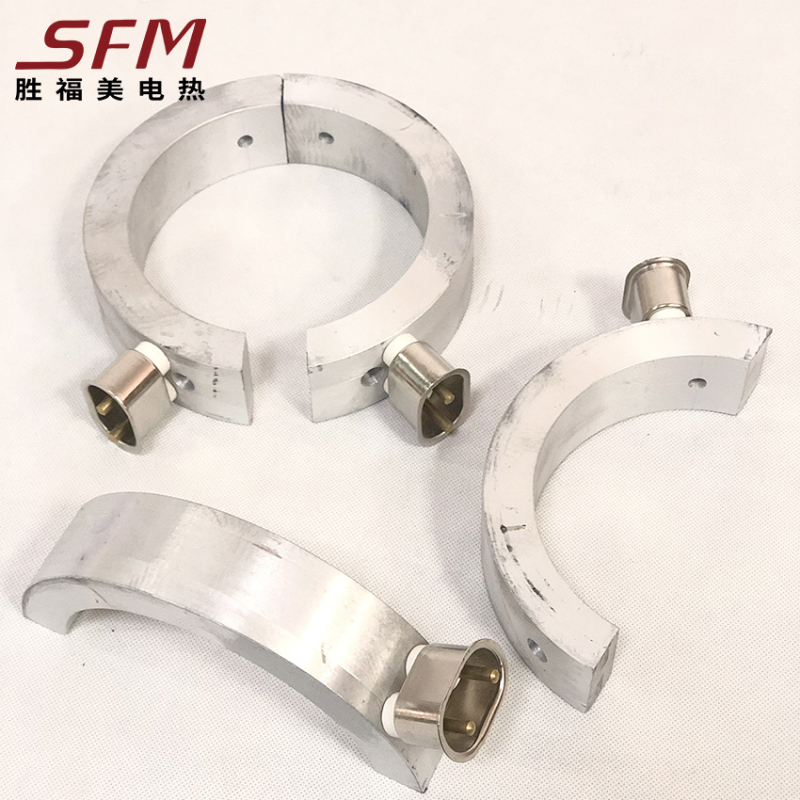

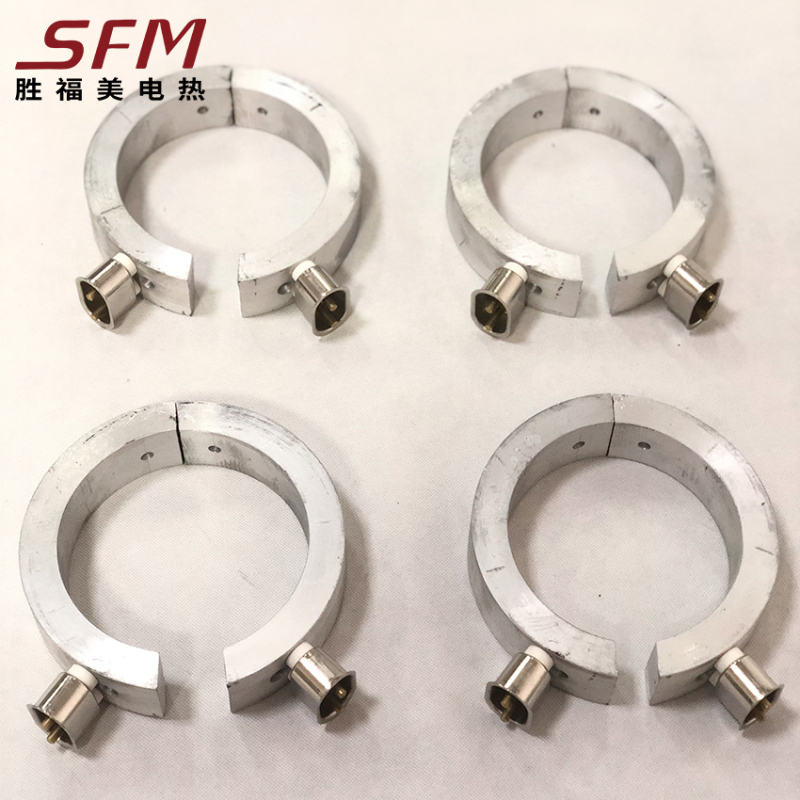

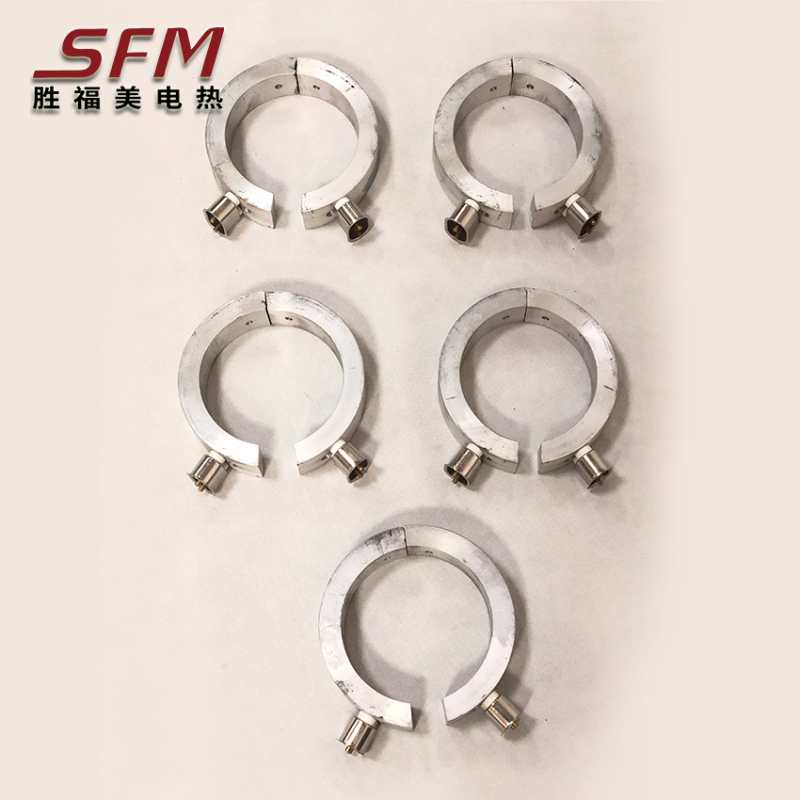

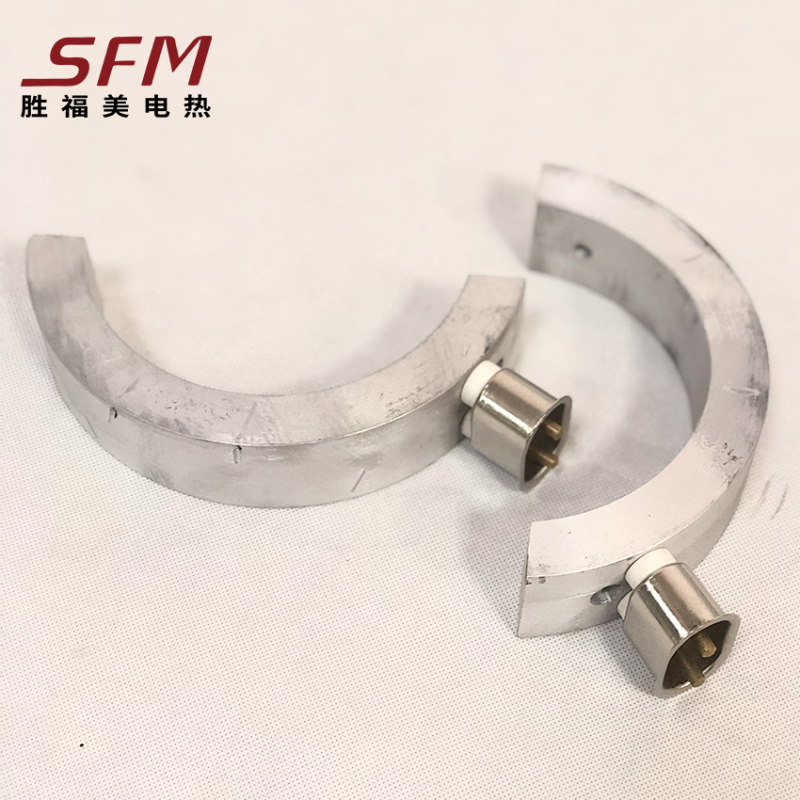

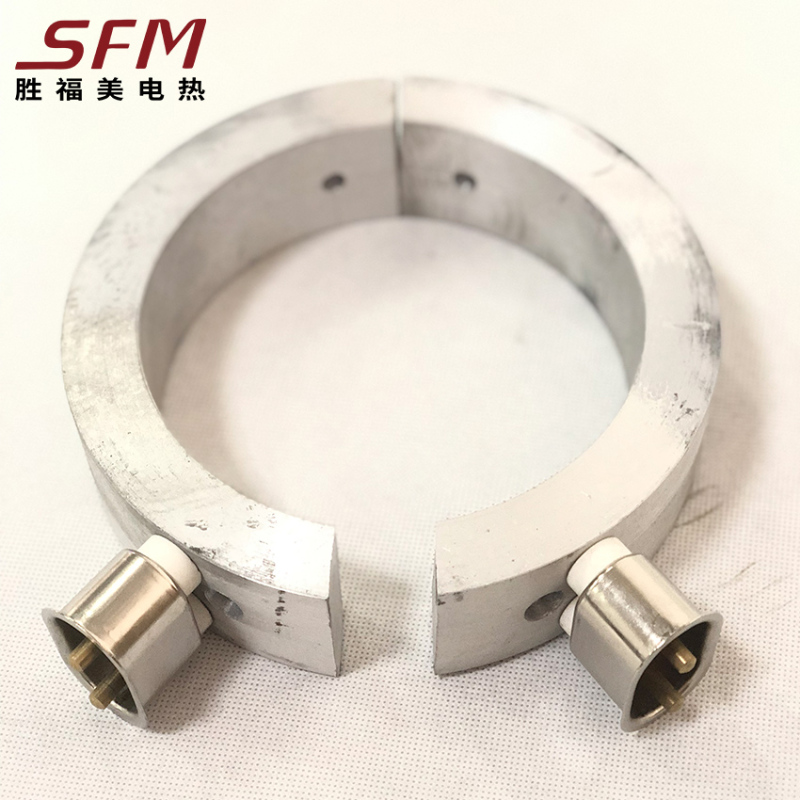

Plug Cast aluminum Band Heatersr
Aluminum Cast Heaters can be casted into any shape and size needed, thus fully covering the part to be heated and virtually becoming the part itself. Our aluminum heaters are customized according to your specifications
- SFM
- China
- 10-15 DAY
- Information
Cast Aluminum Heater Description:
Cast in aluminum heater is mainly used for extrusion and casting moulding machines. It has a wide application in various machinery industries. The operation temperature can reach up to 300°C (Aluminium). In order to concentrate the heat to one direction on the injection face, the other sides of the product are covered by heat retention and heat insulation materials. So it has advantages such as advanced technology, high heat retention, long lifetime, anti-pollution, etc. It is widely used in plastic extrusion, chemical fibre, blowing moulding machines
Product Name | Die Casting Aluminum Band Heater |
Thickness | 20mm, 30mm, 35mm, or customized |
Working Temperature | Normal temperature 350 degree,max 400 degree |
Voltage | 120V, 240V, 480V, 600V or customized |
Power | 50-2000W, or customized |
Shape | round, flat, rectangular, square,air-cooled, water-cooled and other shapes |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Leakage current | <0.5MA |
Insulation resistance | > 2MΩ |
Material | Aluminum, brass, bronze or cupronickel alloy |
Cast In heaters for all plastics processing applications including, air and liquid cooled barrel heaters, L-shaped heaters, vent cut out heaters, heat only cast in barrel heaters, air cooled with shroud, hollow cast nozzle heaters, and cooling jackets for cast in barrel heaters.
Cast band heaters (Cast-in) are available in Aluminium (400ºC), Brass (600ºC) and Bronze (700ºC). Cast aluminium water-cooled units are the most common. The casting contains both Incoloy sheathed heating elements and stainless steel cooling tubes. The heaters are available with bolt clamping or separate stainless steel strap clamping. Heating elements are supplied standard with threaded stud terminals for electrical connections. Sheet metal terminal boxes and other termination options are available.
Order Guide
Please specify the following when ordering.
1：The inner diameter (mm) and length (mm) of heaters
2：Thickness of heaters
3：Terminal length (max & min) and the distance of terminal length
4：The diameter, length of cooling tubes and the distance between them.
5：Voltage and power density
6：Gap of two pieces if applicable
7：Wiring type and position
8：Whether need air blowers
9：Content of the stamping if needed
10：Order quantity
11：Delivery date
** It’s better to provide us with the drawings/pictures
