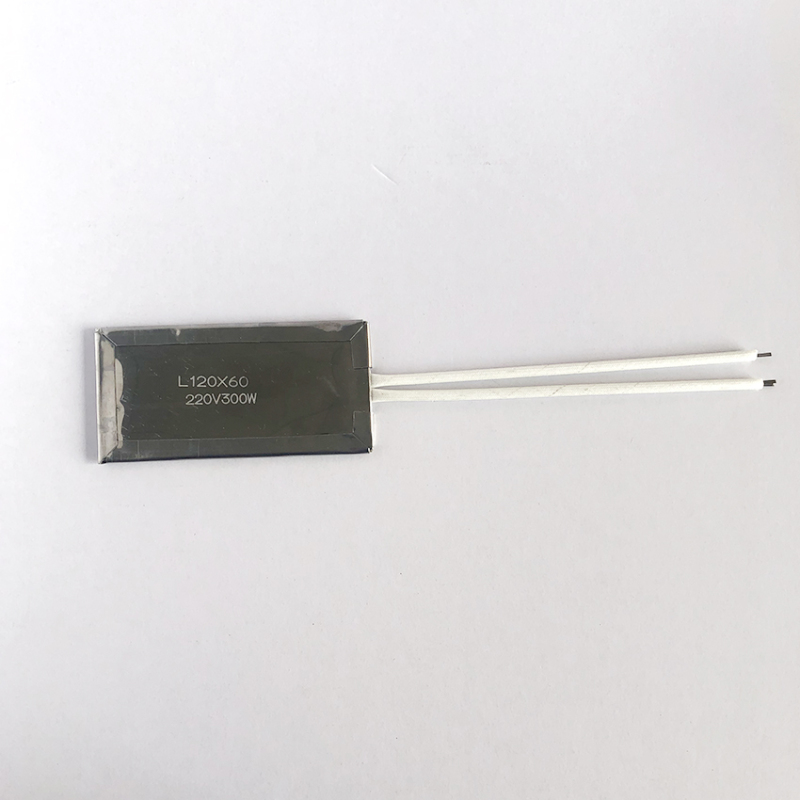

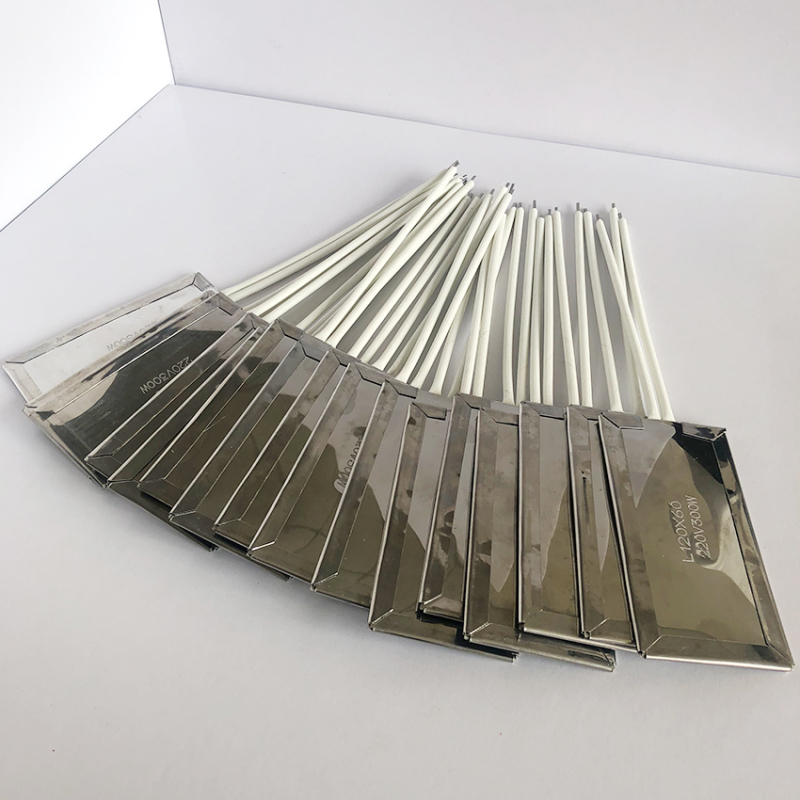

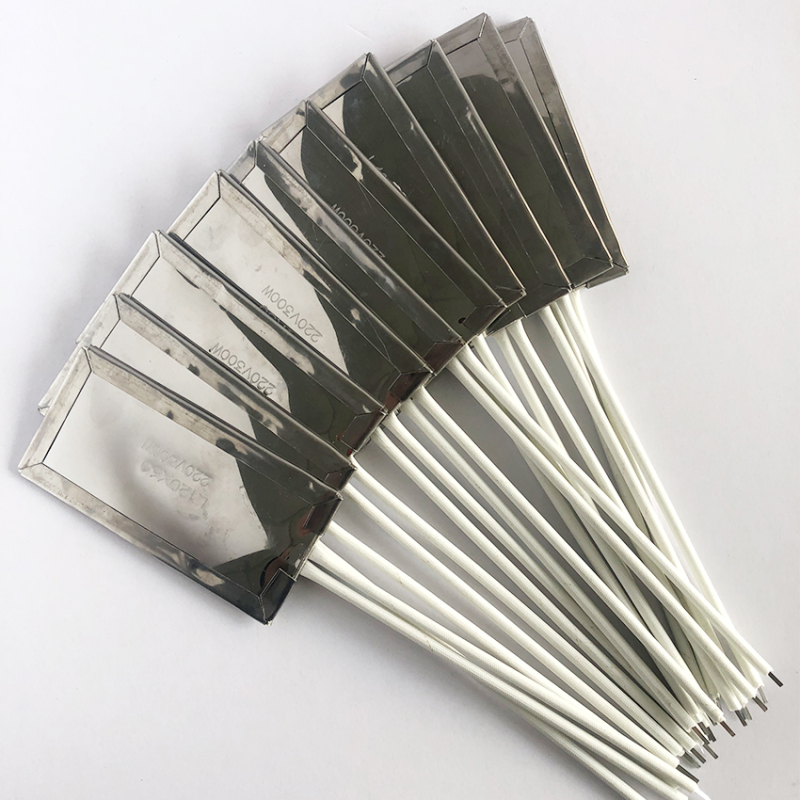

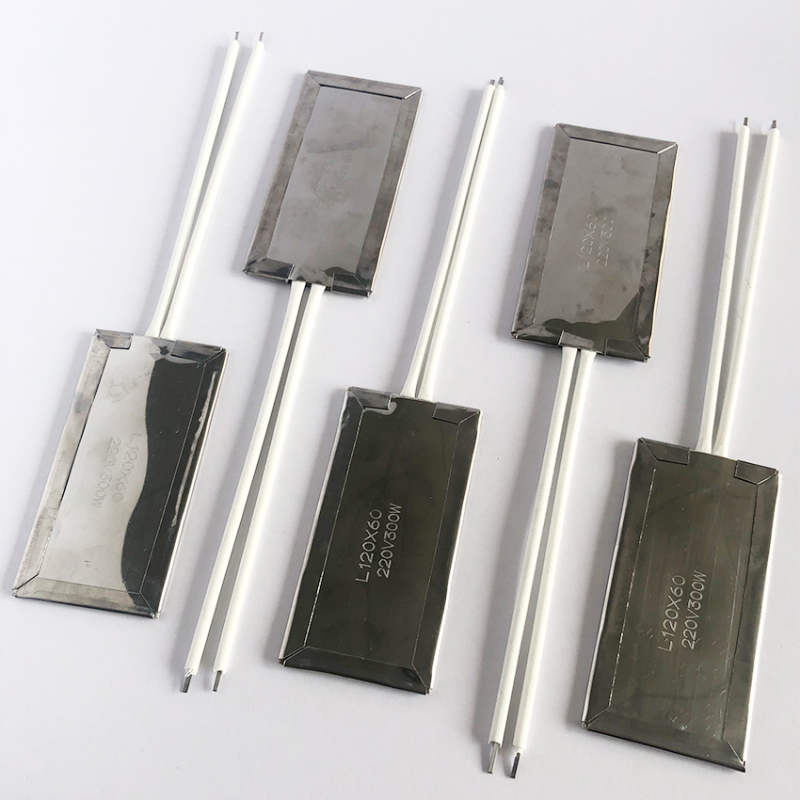

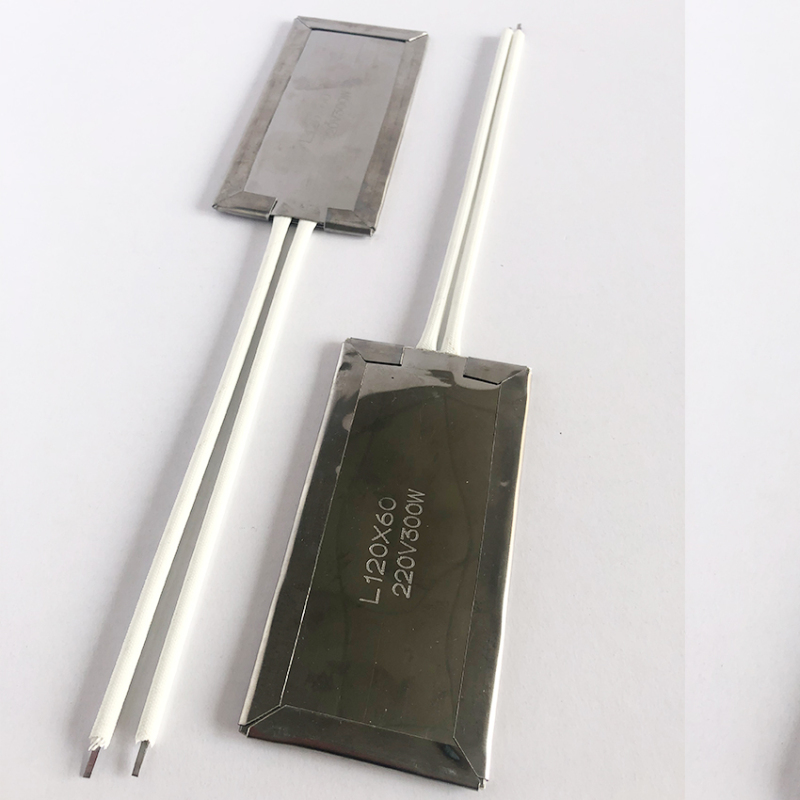

Mica Plate Heater With Surface Leads

Stainless Steel mica plate heater was made of stainless steel sheet, mica sheet, resistance wire/ strip , stainless steel sheet standard thickness is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again each side for insulation. They can be made to be many different kinds of shape as your requirement.

  • SFM
  • china
  • 2-7 day
  • Information

NON-STANDARD LOCATION OF LEADS OR TERMINALS

Terminations could be offset, paralleled, centered, or at each end. Lead wires are available.



Leads or terminals may be located at any reasonable place along the heater for applications where standard connections may be inaccessible.



HOLES AND CUTOUTS

Mounting holes locations could be customized. Please provide drawing for hole dimensions and locations.

flat mica plate heater


Technical  Parameters

Voltage:

110V/220V/230V/240V/380V

Power:

Can be customized

Wattage:

Up to 3W/cm2

Wattage Tolerance :

+5%, -10%

Temperature:

300-600℃

Sheath Thickness:

Can be customized

Insulation Resistance:

 ≥100 MΩ

plate heater

Main Materials

Sheath Material

Stainless steel

Resistance Wire

Nickel Chromium (Ni80Cr20)

Insulation

Mica

Lead Wire

With protective sleeve, steel hose or braid

Terminal

Thread, ceramic, metal box, plug

mica plate heater


Features

1. Easy and economical to install

2. Available in a wide range of wattages & voltages

3. Uniform heat distribution

4. Ribbon resistance offers broad surface contact for extended life

5. Could be used single or in groups to provide the required amount of heat

6. Flexible in shape design to fit applications

7. Durable

 flat mica plate heater

Design Details

Please provide the following information:

1. Operating temperature

2. Voltage and phase

3. Rating power

4. Termination types

5. Mounting method

6. Detail dimensions

7. Holes and cutouts position

Note:The more details provided, the better it'll be designed and fits the application



Factory Show

Mica Nozzle Band Heater stock photos
Company Style
High quality material - magnesium oxide powder
